The Complete CorVascular Product Line

Three platforms. One vascular workflow.

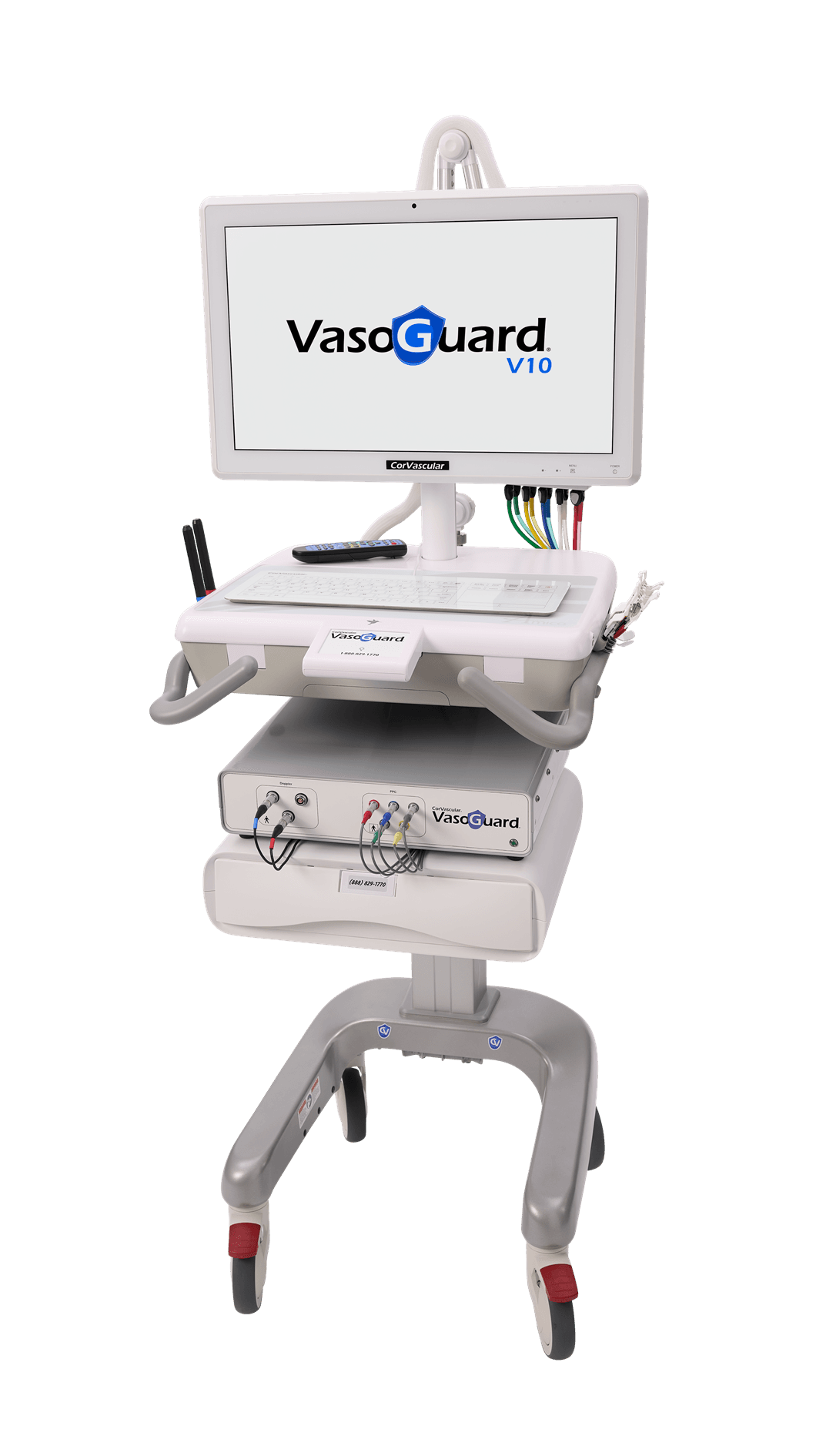

VasoGuard V10 physiologic vascular testing system on its cart

Physiologic Testing

VasoGuard® V-Series

Scroll to Explore

VasoGuard Model Comparison Table

Pick two systems to compare

VasoGuard V-Series specification comparison
VasoGuard V-Series
Air Hoses108
CartH1H1
PPG54
Doppler8 MHz, 4 MHz8 MHz, 4 MHz
PC24"22"
CameraIncludedOptional
Included on every system
Touchscreen
Included
Windows
Windows 10 Enterprise + Free 11 Upgrade
PC Battery
Included
Keyboard
Sealed + Antimicrobial + Backlit
Remote
Included
Internet
WiFi, Ethernet
DICOM Send & Worklist
Included
Printer
Local or Network
Software Updates
Free for Life
5 Year Accidental Damage Coverage
Included
5 Year Bumper-To-Bumper Warranty
Included
ConfigureConfigureConfigure

Support and Services

Need Help Choosing?

Our experts can help you select the right VasoGuard model for your specific clinical needs.

Contact Expert
Request a Demo

See the VasoGuard system in action with a personalized demonstration at your facility.

Schedule Demo
Financing Options

Flexible financing and leasing options available to fit your budget and cash flow needs.

Learn More

Choose Your VasoGuard Model

Select from our comprehensive range of peripheral vascular testing systems, each designed to meet specific clinical requirements and testing protocols.

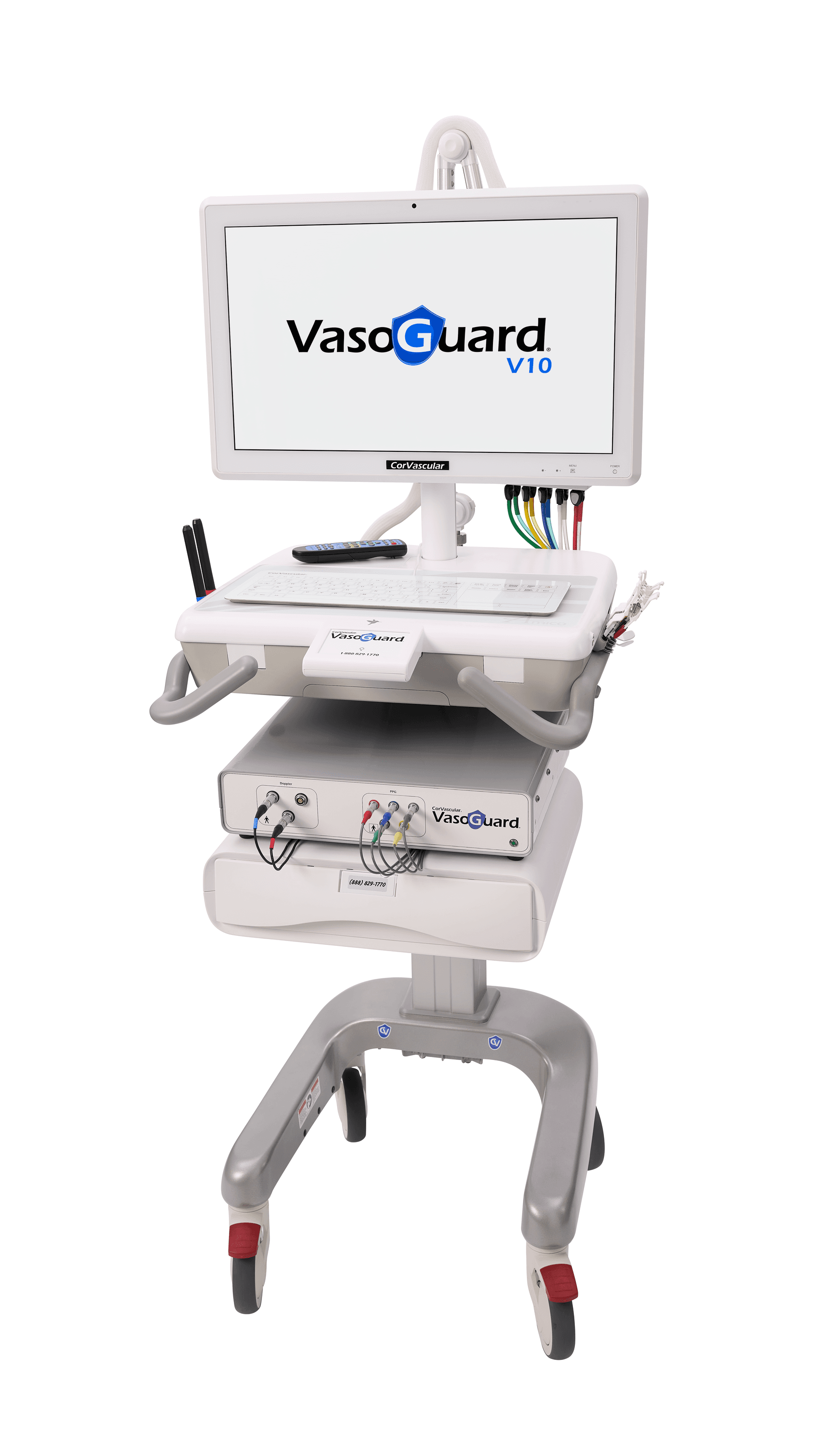

VasoGuard V10 Premium Vascular Testing System - 10 pressure channels, 5 PPG probes, 3 Doppler ports for comprehensive peripheral vascular diagnostics
Premium System

VasoGuard V10 - Premium Vascular Testing System

10 Pressure Channels / 5 PPG / 3 Doppler

Our flagship system combines cutting-edge technology with unparalleled precision. The V10 offers advanced features including real-time pressure monitoring, automated calibration, and comprehensive data logging capabilities. Perfect for high-volume facilities requiring maximum performance and reliability.

  • 10 Air Hoses
  • H1 Height Adjustable Cart
  • 5 Waterproof PPG Probes
  • 8 MHz & 4 MHz Doppler
  • 24" Medical Grade Touchscreen PC
Full Spec SheetConfigure

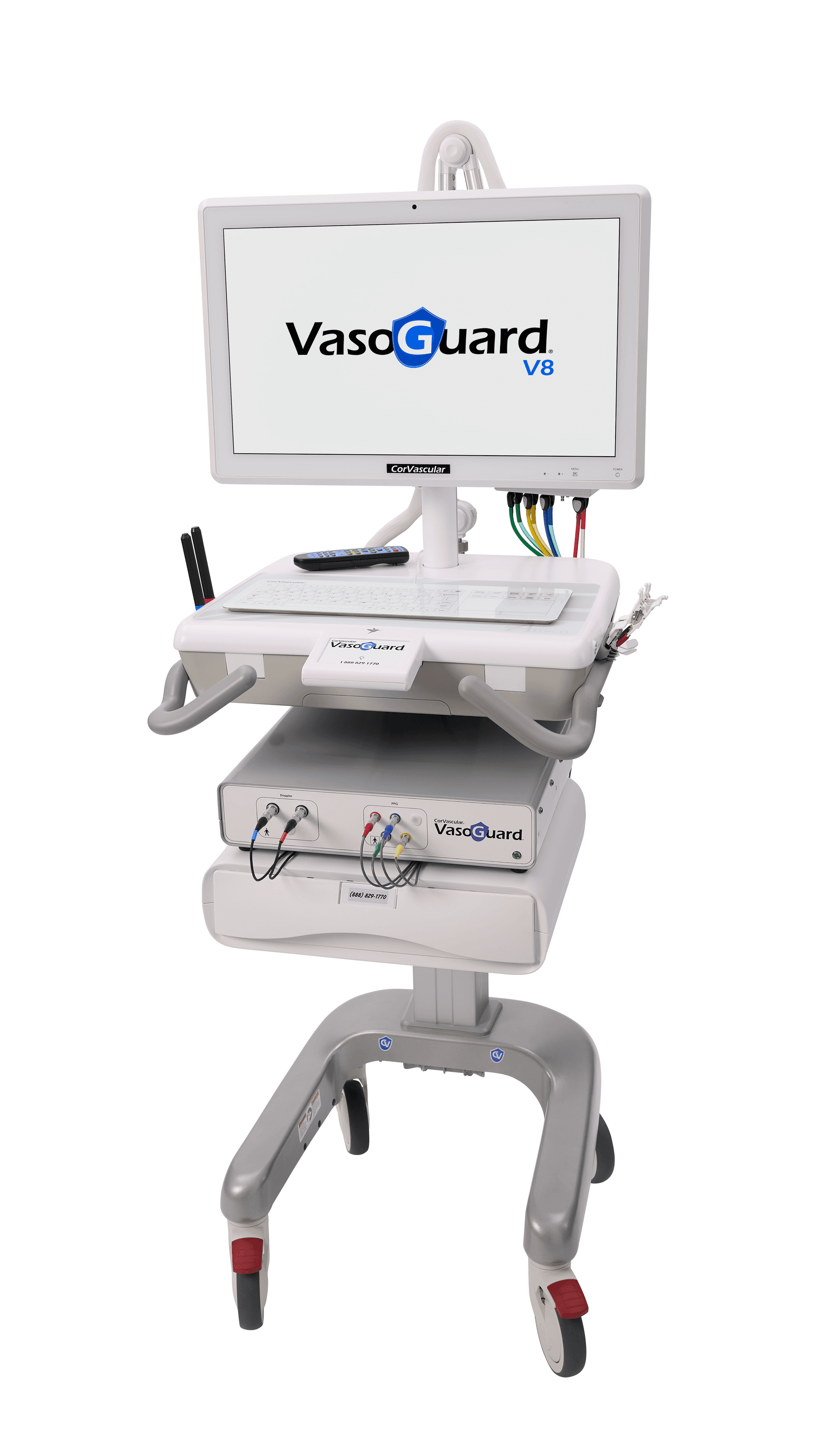

VasoGuard V8 Advanced Vascular Testing System - 8 pressure channels, 4 PPG probes, 2 Doppler ports for professional vascular diagnostics
Professional System

VasoGuard V8 - Advanced Vascular Testing System

8 Pressure Channels / 4 PPG / 2 Doppler

The V8 delivers professional-grade performance with enhanced features for modern healthcare facilities. This system offers improved accuracy, faster response times, and expanded connectivity options, making it ideal for medium to large practices.

  • 8 Air Hoses
  • H1 Height Adjustable Cart
  • 4 Waterproof PPG Probes
  • 8 MHz & 4 MHz Doppler
  • 22" Medical Grade Touchscreen PC
Full Spec SheetConfigure
Hardware Upgradable to V10

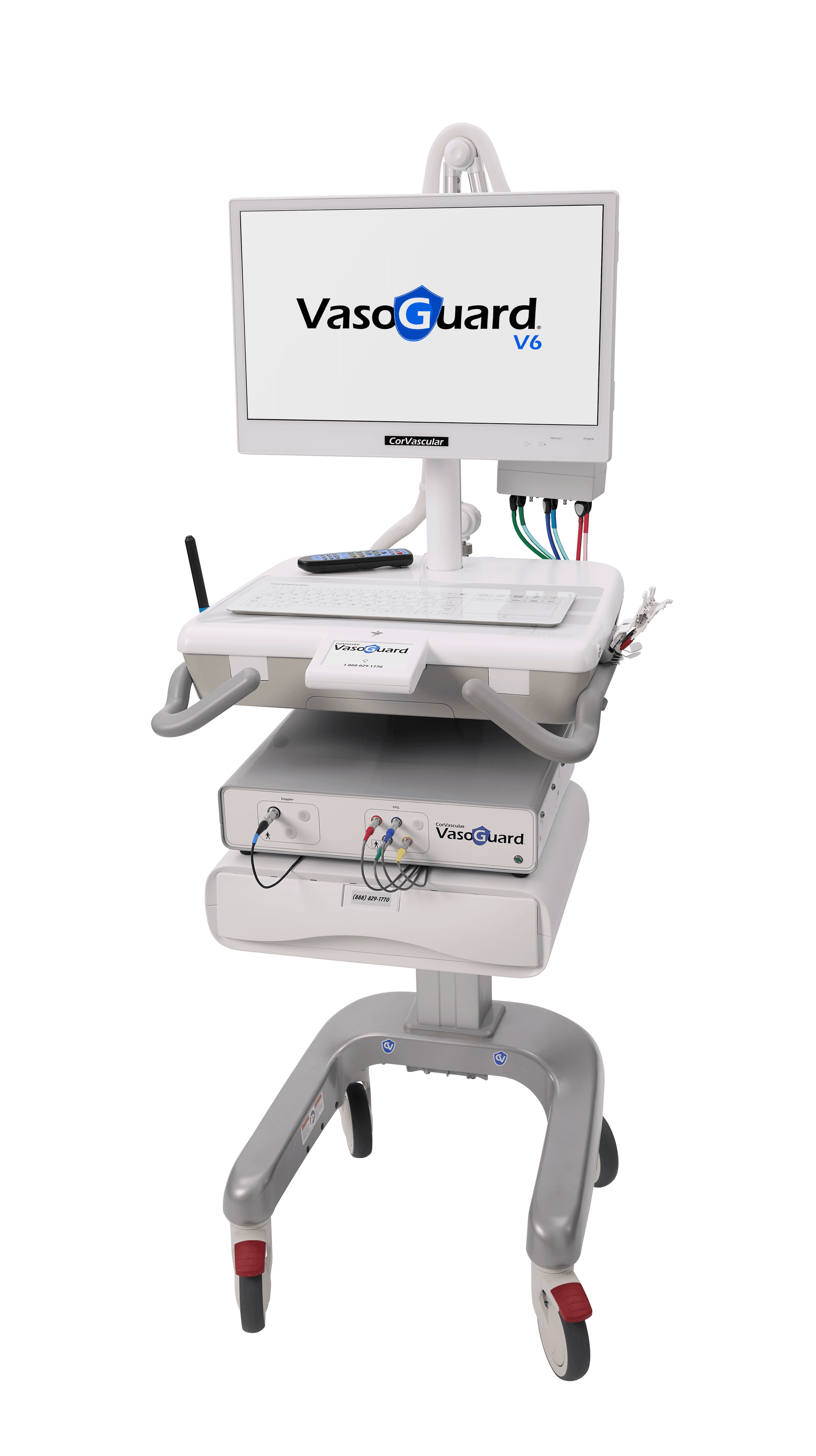

VasoGuard V6 Professional Vascular Testing System - 6 pressure channels, 4 PPG probes, 1 Doppler port for standard vascular diagnostics
Standard System

VasoGuard V6 - Professional Vascular Testing System

6 Pressure Channels / 4 PPG / 1 Doppler

The V6 provides a perfect balance of performance and value. This versatile system offers essential features with reliable performance, making it an excellent choice for growing practices and smaller facilities.

  • 6 Air Hoses
  • H1 Height Adjustable Cart
  • 4 Waterproof PPG Probes
  • 8 MHz or 4 MHz Doppler
  • 22" Medical Grade Touchscreen PC
Full Spec SheetConfigure
Hardware Upgradable to V8 or V10

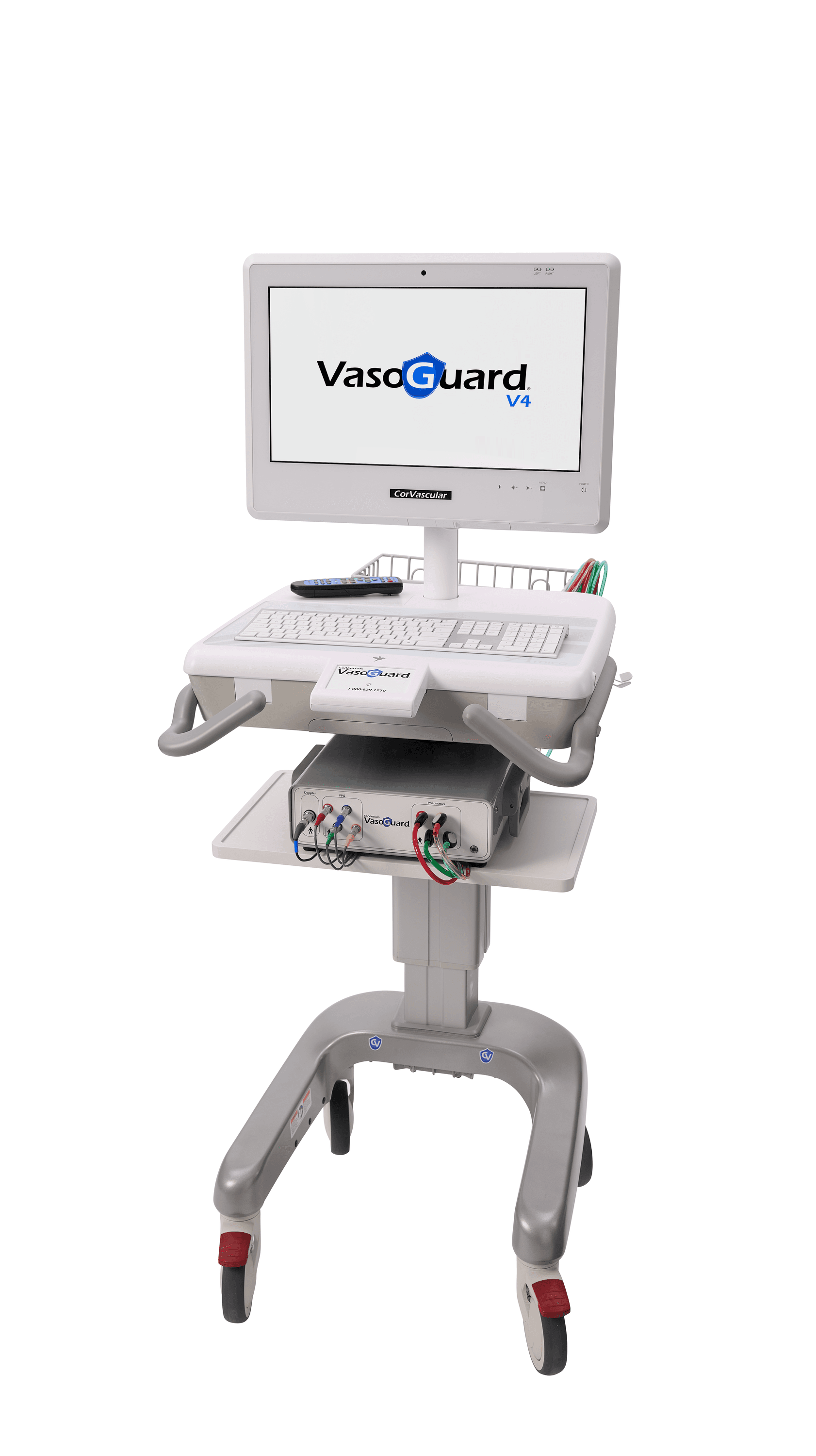

VasoGuard V4 Essential Vascular Testing System - 4 pressure channels, 4 PPG probes, 1 Doppler port for basic vascular diagnostics
Essential System

VasoGuard V4 - Essential Vascular Testing System

4 Pressure Channels / 4 PPG / 1 Doppler

The V4 offers core functionality with a focus on reliability and ease of use. This entry-level system provides essential features while maintaining the quality and precision you expect from VasoGuard.

  • 4 Air Hoses
  • H2 Height Adjustable Cart
  • 4 Waterproof PPG Probes
  • 8 MHz or 4 MHz Doppler
  • 18.5" Medical Grade Touchscreen PC
Full Spec SheetConfigure

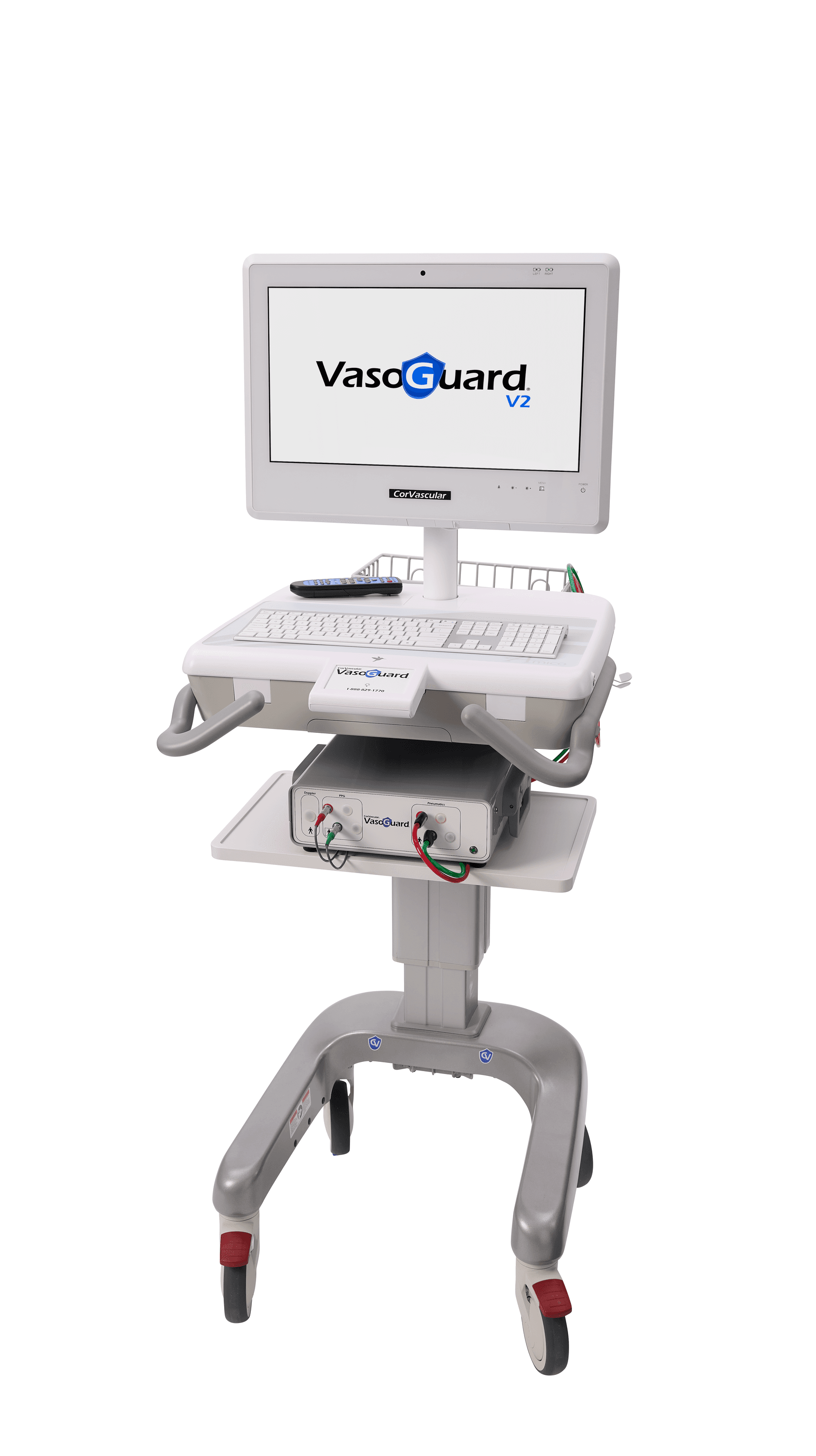

VasoGuard V2 Compact Vascular Testing System - 2 pressure channels, 2 PPG probes, optional Doppler for basic vascular testing
Compact System

VasoGuard V2 - Compact Vascular Testing System

2 Pressure Channels / 2 PPG

The V2 is our most compact and affordable system, ideal for clinics and practices with limited space or basic testing needs. It delivers reliable results with a streamlined feature set.

  • 2 Air Hoses
  • H2 Height Adjustable Cart
  • 2 Waterproof PPG Probes
  • Optional Doppler Port
  • 18.5" Medical Grade Touchscreen PC
Full Spec SheetConfigure
Hardware Upgradable to V4

DuplexABIDuplexABI: vascular testing and duplex ultrasound in one point-of-care system

ABI Finds It.Duplex Defines It.

DuplexABI™ pairs the physiologic testing clinicians already run on VasoGuard® with duplex ultrasound imaging in a single portable platform. One cart, one operator, one workflow that runs from screening through anatomic and hemodynamic characterization.

  • Doppler ABI and PPG TBI on the VasoGuard® platform
  • B-mode, color, and spectral Doppler imaging at the same cart
  • One operator position for testing and imaging
  • Two cart configurations matched to footprint and screen size
  • Developed in collaboration with Terason
Request a Demo

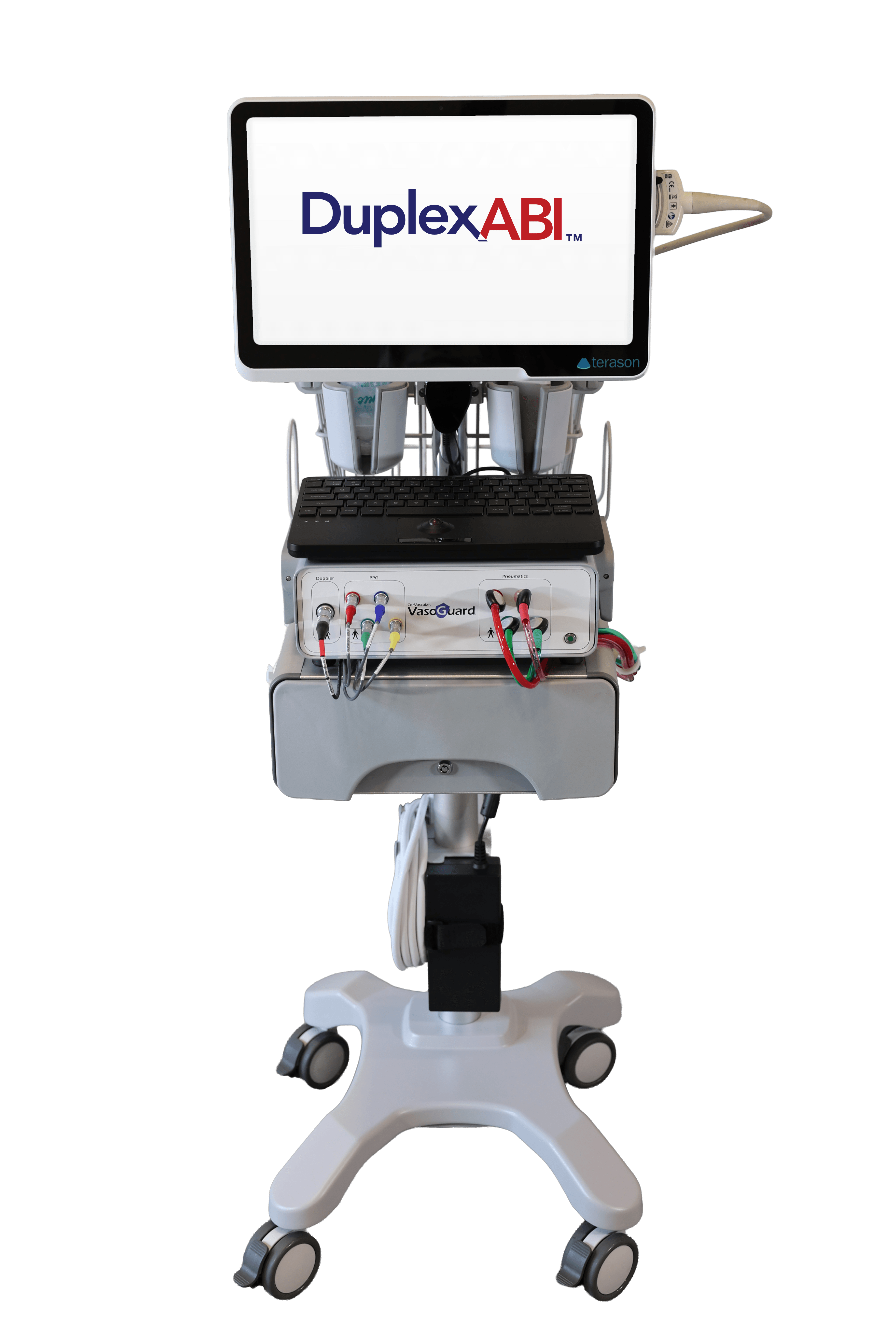

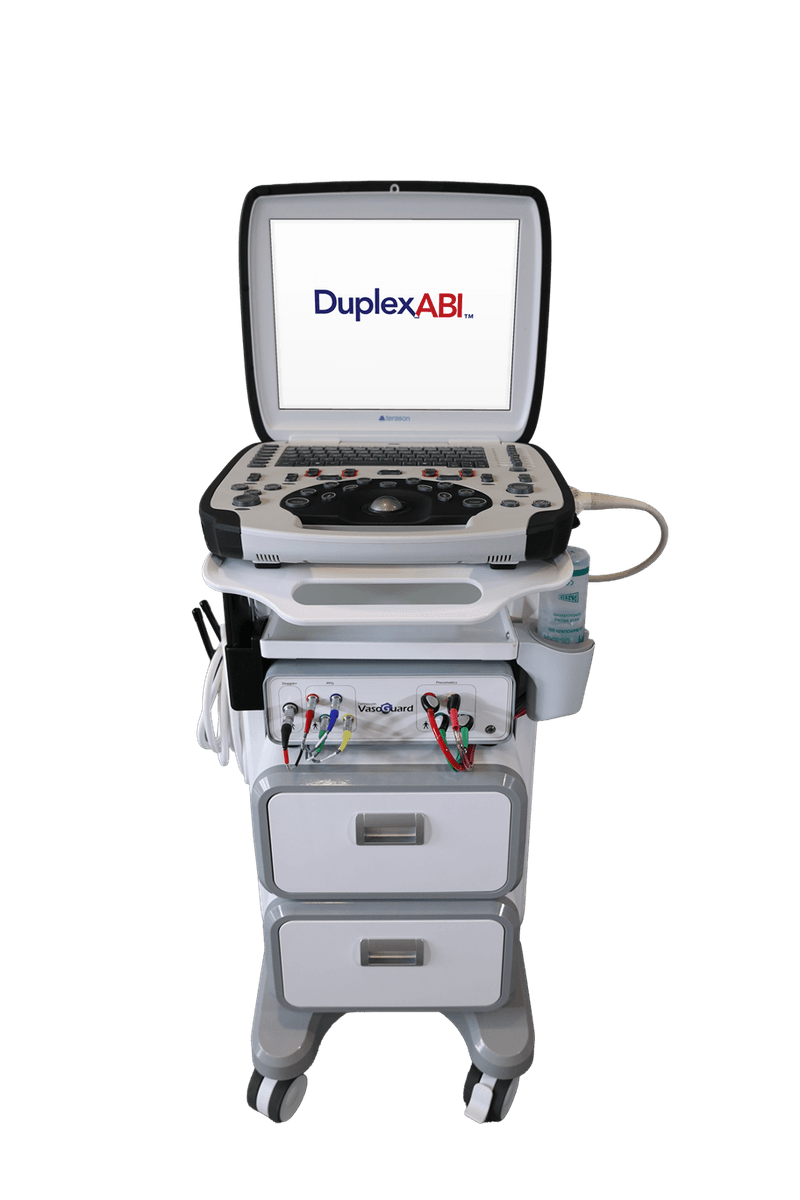

DuplexABI H2 cart configuration, front viewDuplexABI H3 cart configuration, front view
CorVascular Exclusive

ASUS Handheld Ultrasound LU800

The wireless LU800 puts diagnostic ultrasound in the palm of your hand, with five probes that cover everything from carotid and peripheral vessel imaging to abdominal, cardiac, and pelvic exams.

Driven by the ASUS MediConnect app and built to work hand in hand with your VasoGuard system.

Five Probes, Compared

Every LU800 probe is a self-contained wireless scanner. Line them up, then pick the transducers that match your exam mix. Specifications below are as published by ASUS.

Swipe sideways to compare all five probes

ASUS LU800 probe specification comparison
LU800 Series
ASUS LU800L linear probeLU800LThe Vascular Workhorse

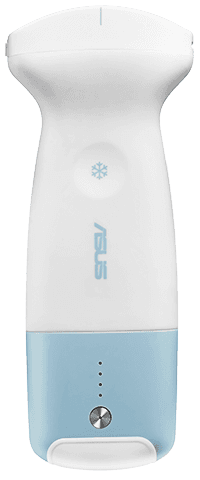

ASUS LU800C convex probeLU800CAbdomen, OB, and FAST

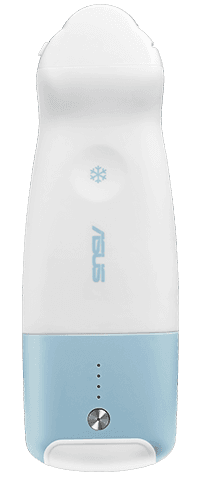

ASUS LU800M microconvex probeLU800MDifficult windows and pediatrics

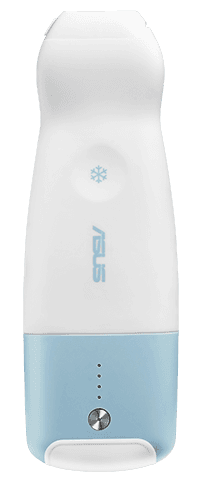

ASUS LU800PA phased array probeLU800PACardiac, lung, and TCD

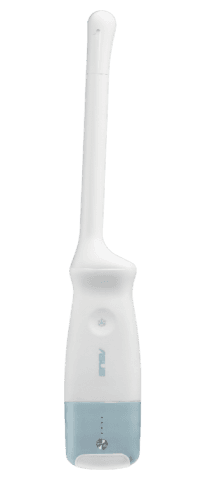

ASUS LU800E endocavity probeLU800EPelvic, prostate, and early OB
Types of arrayLinearConvexMicroconvexPhased ArrayEndocavity
Frequency4.2-12.5 MHz2-5 MHz3.6-8.5 MHz1.3-3.7 MHz3.6-8.5 MHz
Max depth12.6 cm30 cm12.6 cm30 cm15 cm
Elements12812812864128
Field of viewNA60°100°90°151°
RadiusNA60 mm15 mmNA10 mm
Dimensions168 × 58 × 34177 × 71 × 34176 × 58 × 34174 × 58 × 34345 × 58 × 34
Weight270 g305 g265 g280 g295 g
Image ModesB / M / CF* / PW* / PD*
Image fileJPEG / PNG / BMP / DICOM*
CompatibilityASUS MediConnect App
Battery3000 mAh
Intended Use & Application
  • Peripheral Vessels
  • Carotid
  • Thyroid
  • Breast
  • Superficial
  • Musculoskeletal
  • Ocular
  • Nerves
  • Abdomen
  • Abdomen Difficult
  • Renal / Spleen
  • Bladder Measurement
  • GYN
  • OB Early
  • OB Mid Late
  • FAST
  • Abdomen
  • Abdomen Difficult
  • Pediatric Cardiac
  • Neo Head
  • Abdomen
  • OB Mid Late
  • Lung
  • TCD
  • Cardiac
  • FAST
  • Pelvis / Urology
  • OB Early
  • Prostate

* Optional. Specifications and intended-use listings as published by ASUS for the LU800 series; see the official ASUS LU800 page for full details.

ASUS MediConnect app iconMediConnect + VasoGuard

All-in-One With VasoGuard

ASUS MediConnect is integrated into VasoGuard. The same system that runs your ABIs, segmental pressures, and waveform studies also drives LU800 imaging, so the whole vascular workup happens in one place.

  • Launch MediConnect imaging straight from the VasoGuard home screen
  • Switch between physiologic testing and live imaging without relaunching
  • Pressures, waveforms, and B-mode imaging from one cart

Image galleries, AI measurements, scan videos, and tutorials live on the dedicated LU800 page.

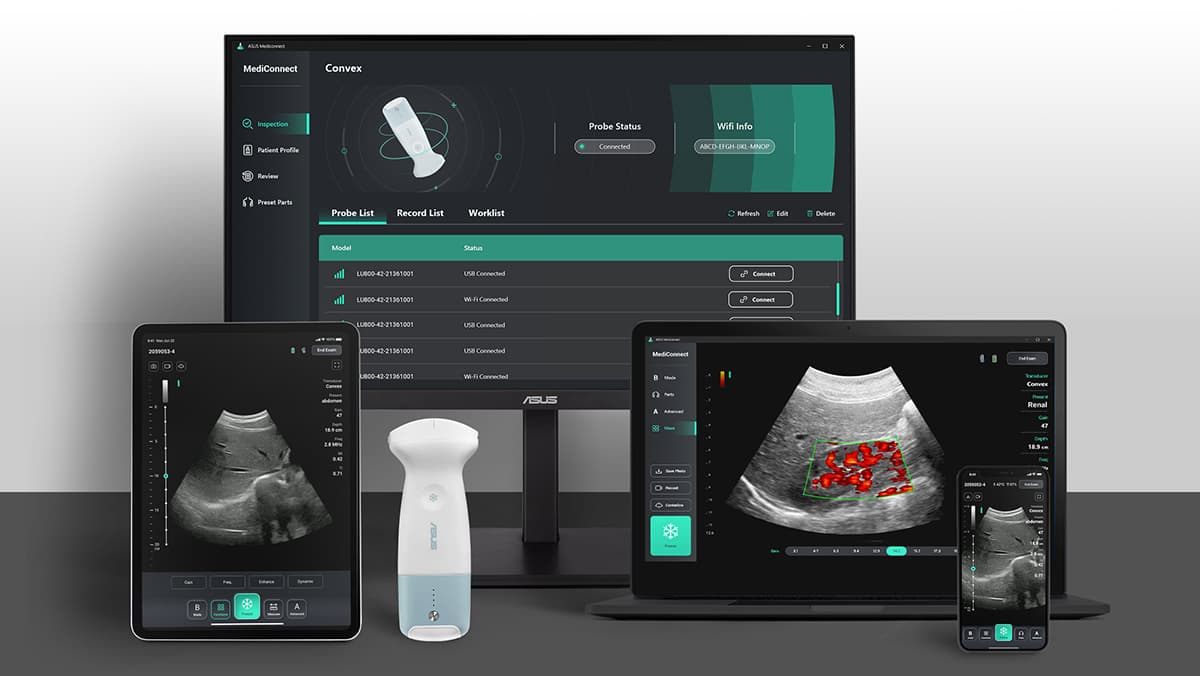

ASUS MediConnect app running on a monitor, tablet, laptop, and phone alongside the LU800 probe

The ASUS Handheld Ultrasound LU800 is intended for use by qualified medical professionals. CorVascular is the exclusive U.S. importer and vascular market distributor for the ASUS FDA-cleared ultrasound portfolio. ASUS and MediConnect are trademarks of ASUSTeK Computer Inc. Product images courtesy of ASUS.

Standalone Diagnostic Tools

Purpose-built handheld diagnostics designed to complement the VasoGuard V-Series, or stand on their own.

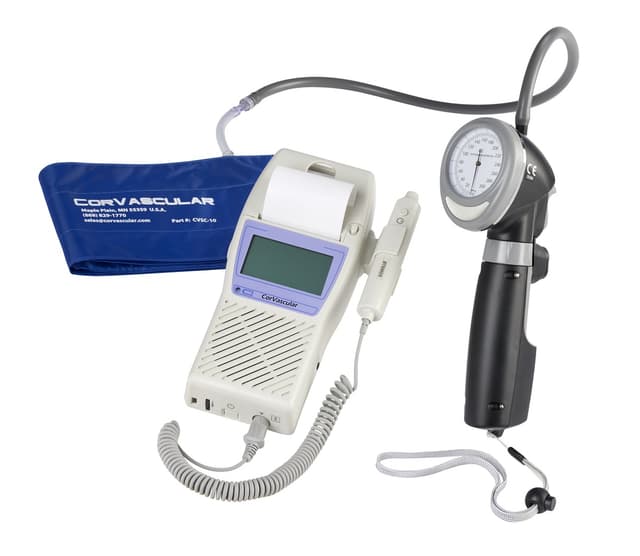

VasoGuard HD45 Handheld Vascular Doppler SystemDoppler + Printer

VasoGuard HD45

Handheld Bidirectional Doppler

Full-featured, battery-powered Doppler with integrated printer, LCD waveform display, and computer interface for complete lower extremity testing.

  • V-Link PC software
  • Integrated thermal printer
  • Real-time waveform LCD
  • 30 waveform memory
  • Rechargeable battery
Details

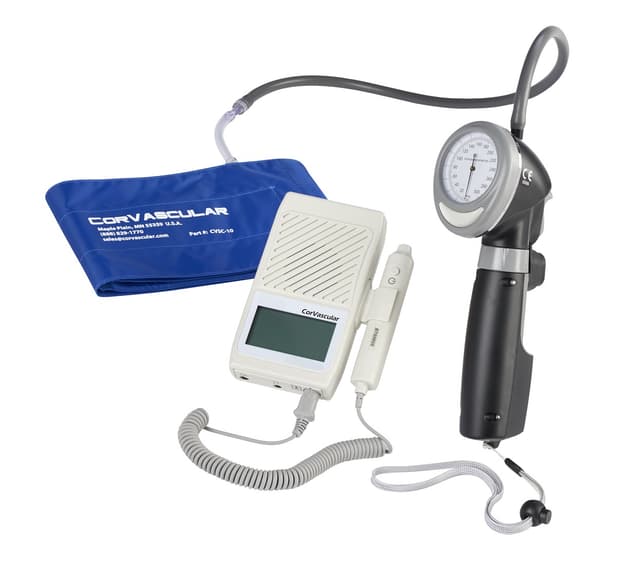

VasoGuard HD30 Handheld Vascular Doppler SystemDoppler + Software

VasoGuard HD30

Pocket Doppler with PC Software

Handheld visual bidirectional pocket Doppler with V-Link PC software for full-size reports, PDF and DICOM compatible documentation.

  • V-Link PC software
  • Real-time waveform LCD
  • 30 waveform memory
  • 9-volt battery powered
  • Single-button operation
Details

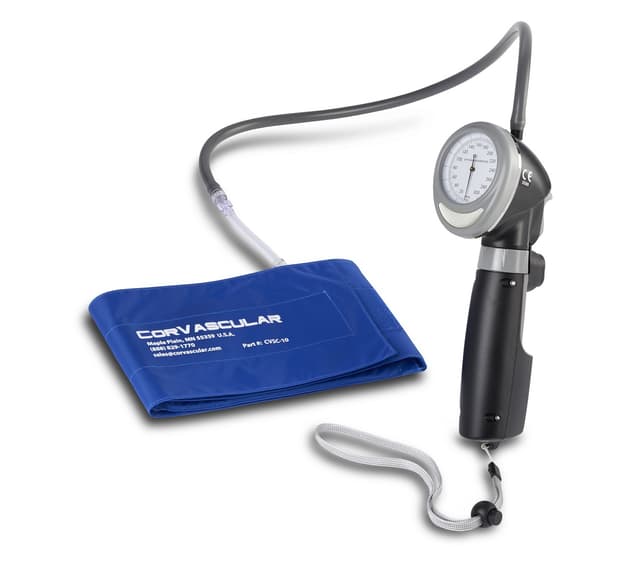

VasoGuard FS1 Auto-Inflation SphygmomanometerAuto-Inflate

VasoGuard FS1

Auto-Inflation Sphygmomanometer

The only auto-inflation handheld sphygmomanometer on the market. Push-button inflation with user-controlled deflation for effortless ABI and Doppler studies.

  • Push-button auto-inflation
  • Trigger-controlled deflation
  • Rechargeable battery
  • Large aneroid display
  • Handles large cuffs & thigh
Details
