VasoGuard Vascular Testing Systems - Complete Product Line
VasoGuard HD30
Handheld Vascular Doppler System
A handheld visual bidirectional pocket Doppler with computer interface capabilities and auto-inflate sphygmomanometer. View a live waveform on the LCD screen and store up to 30 waveforms for later reference.
Advanced Handheld Doppler Technology
The HD30 combines portable design with advanced Doppler technology for comprehensive vascular testing and documentation.
Simple single-button operation which locks in gain and baseline automatically for consistent results.
V-Link PC Software included for printing full-size reports, PDF and DICOM compatible files.
Visual waveform LCD display shows real-time Doppler signals for immediate assessment.
Uses 9-volt battery for reliable power in mobile testing services and portable use.
Store up to 30 waveforms for later reference and comprehensive documentation.
Computer interface capabilities for downloading waveforms and generating comprehensive reports.
Complete Vascular Testing Solution
The VasoGuard HD30 is designed for comprehensive vascular testing including ABI studies, TBI measurements, PPG toe pressures, venous reflux, and segmental pressure studies. Its handheld design makes it ideal for mobile testing services.
Ideal Applications:
- Ankle Brachial Index (ABI) studies
- Toe Brachial Index (TBI) studies
- PPG Toe Pressures
- PPG Venous Reflux
- Venous Compressions
- Lower Extremity Studies
- Segmental Pressure Studies
Compliance & Standards
CorVascular HD Series VasoGuard meets the following international standards:
ISO 13485:2003; CAN/CSA ISO 13485:2003; EN60601-1; IEC60601-1-2; IEC60601-2-37; IEC62304; IS014971; ANSI/AAMI/ISO 81060-1:2007; ANSI/AAMI/IEC 80601-2-30:2009
Manufactured by Hadeco

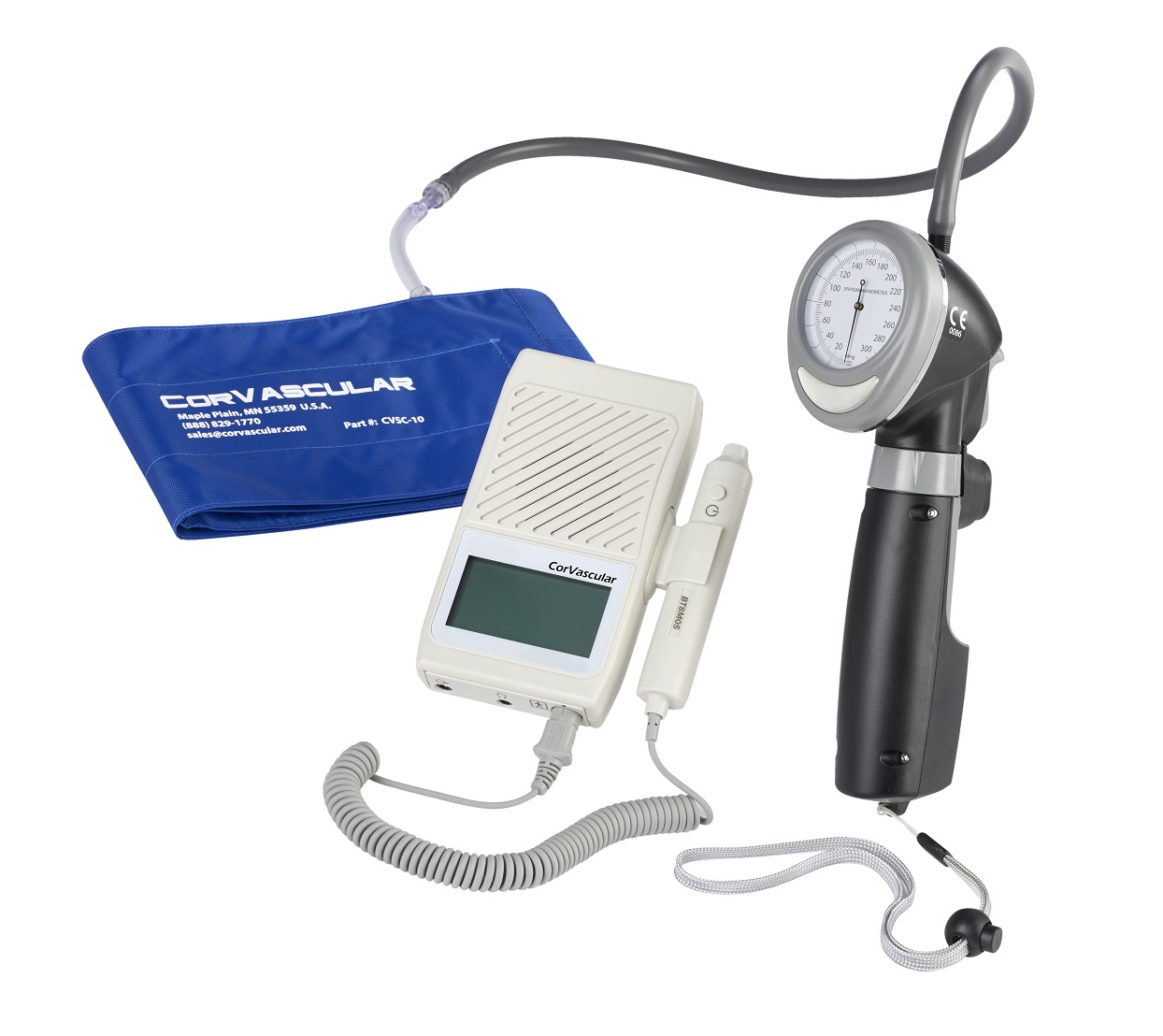

Complete HD30 Package
Everything you need for comprehensive vascular testing

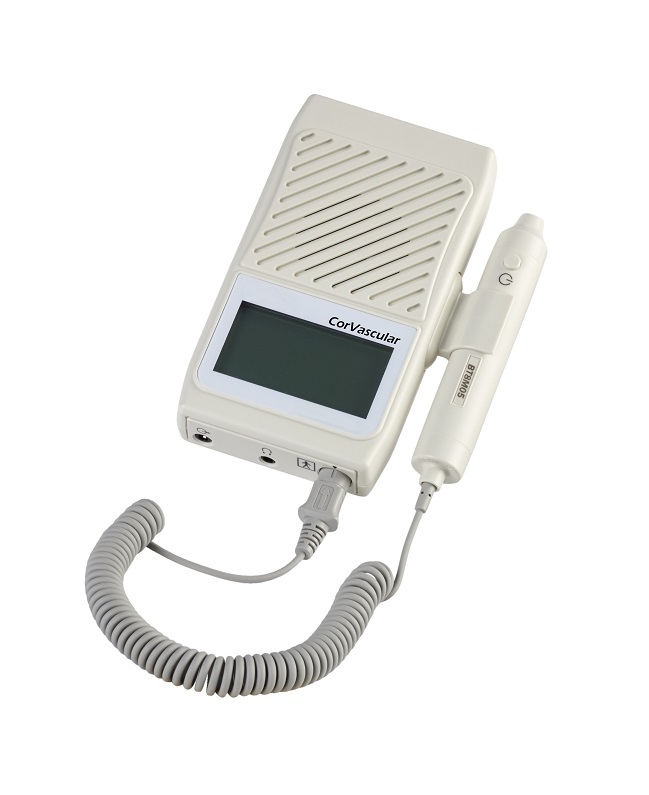

VasoGuard HD3 Pocket Doppler (9-volt battery)
Included with VasoGuard HD30 system
8 MHz Standard Doppler Probe with Curly Cord
Included with VasoGuard HD30 system
FS1 Aneroid Auto-Inflation Sphygmomanometer with Rechargeable Battery
Included with VasoGuard HD30 system
V-Link PC Software
Included with VasoGuard HD30 system
AC Charger
Included with VasoGuard HD30 system
Wrist Strap
Included with VasoGuard HD30 system
Carrying Case
Included with VasoGuard HD30 system
Bottle Ultrasound Gel
Included with VasoGuard HD30 system
Cuff Set: SC10 & SC12 Blood Pressure Cuffs
Included with VasoGuard HD30 system
Available Options
Choose the right options for your specific testing needs
8 MHz Flat Doppler Probe
Eliminates the need to hold the probe during testing for hands-free convenience.
5 MHz Pencil Doppler Probe
Lower frequency probe for deeper penetration and larger vessel assessment.
10 MHz Pencil Doppler Probe
Higher frequency probe for superficial vessels and detailed imaging.
2.25 MHz Fetal Doppler Probe
Specialized probe for fetal heart rate monitoring and obstetric applications.
2.25 MHz Flat Doppler Monitoring Probe
Flat monitoring probe for continuous monitoring applications.
Touchless Foot Temperature Probe
Advanced temperature monitoring for comprehensive vascular assessment.
Why Choose the VasoGuard HD30?
Experience comprehensive vascular testing with advanced handheld Doppler technology
Mobile Testing Ready
Completely battery powered and handheld design makes it ideal for mobile testing services and cost-conscious diagnostic clinics.
PC Software Integration
V-Link PC Software provides comprehensive documentation for reimbursement and reporting with PDF and DICOM compatibility.
Real-Time Visualization
Real-time visual waveform LCD display allows immediate assessment of Doppler signals during testing.
Comprehensive Testing
Supports ABI, TBI, PPG toe pressures, venous reflux, and segmental pressure studies in one system.
Reimbursement Compliant
Conforms to reimbursement guidelines (CPT 93922 & 93923) with optional V-Link Software for documentation.
Complete Package
Includes Doppler, sphygmomanometer, probes, cuffs, carrying case, and comprehensive warranty.
Ready for Advanced Handheld Doppler Technology?
Experience comprehensive vascular testing with advanced handheld Doppler technology. Contact our sales team to learn more about the VasoGuard HD30.
