ASUS HANDHELD
ULTRASOUND LU800
Ultrasound scans. Anytime, anywhere.

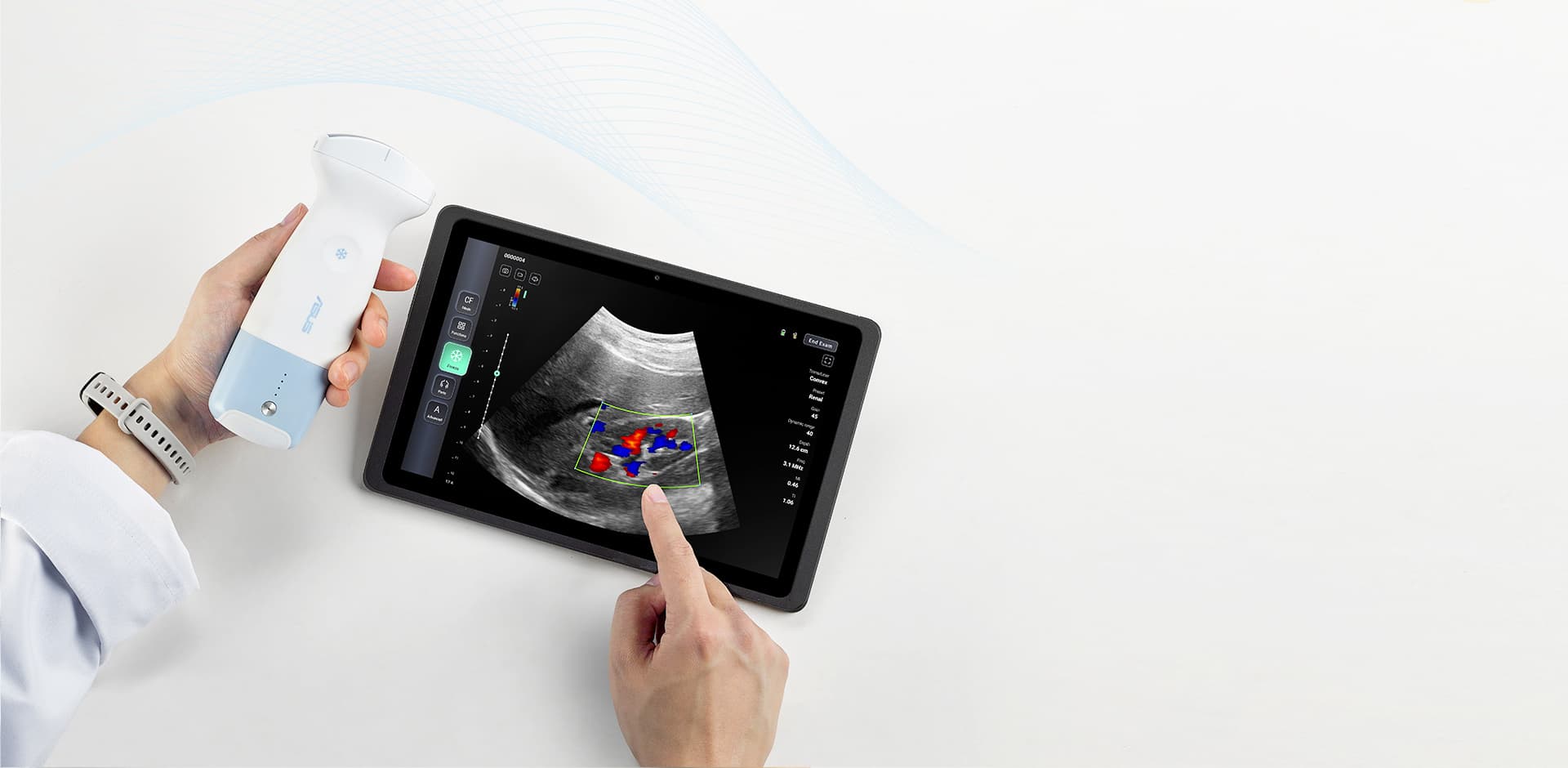

The wireless LU800 puts high-quality point-of-care imaging in the palm of your hand.
ASUS HANDHELD
ULTRASOUND LU800
Ultrasound scans. Anytime, anywhere.
The wireless LU800 puts high-quality point-of-care imaging in the palm of your hand.
One Handheld Platform. Five Probes.
Every LU800 probe is a complete, wireless ultrasound system. Pick the transducer that matches your exams, or combine several and switch between them in the MediConnect app.

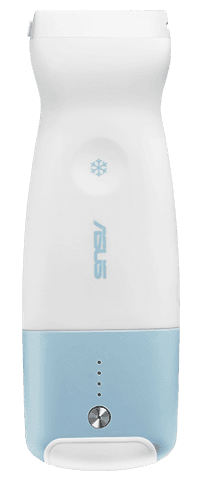

Linear
LU800L
- Frequency
- 4.2-12.5 MHz
- Max depth
- 12.6 cm

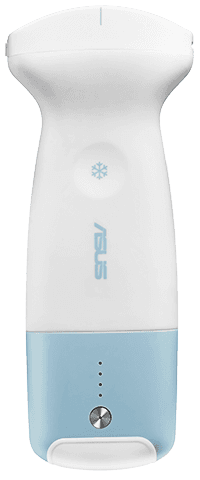

Convex
LU800C
- Frequency
- 2-5 MHz
- Max depth
- 30 cm
- Field of view
- 60°

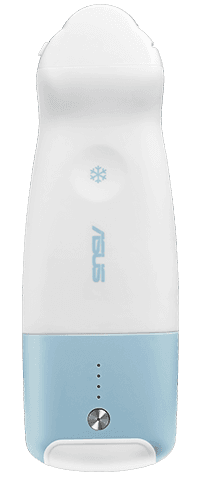

Microconvex
LU800M
- Frequency
- 3.6-8.5 MHz
- Max depth
- 12.6 cm
- Field of view
- 100°

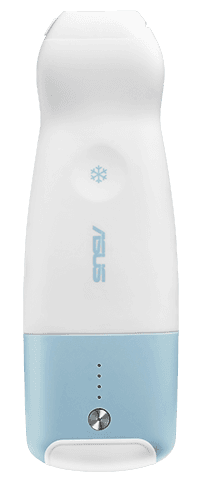

Phased Array
LU800PA
- Frequency
- 1.3-3.7 MHz
- Max depth
- 30 cm
- Field of view
- 90°

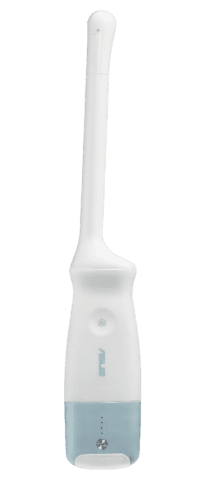

Endocavity
LU800E
- Frequency
- 3.6-8.5 MHz
- Max depth
- 15 cm
- Field of view
- 151°
Probe specifications provided by ASUS. See the official ASUS LU800 page for full details.
See the Image Quality
A 128-channel beamformer drives five imaging modes. These are actual LU800 screen captures: switch modes and read the acquisition settings straight off each screen.

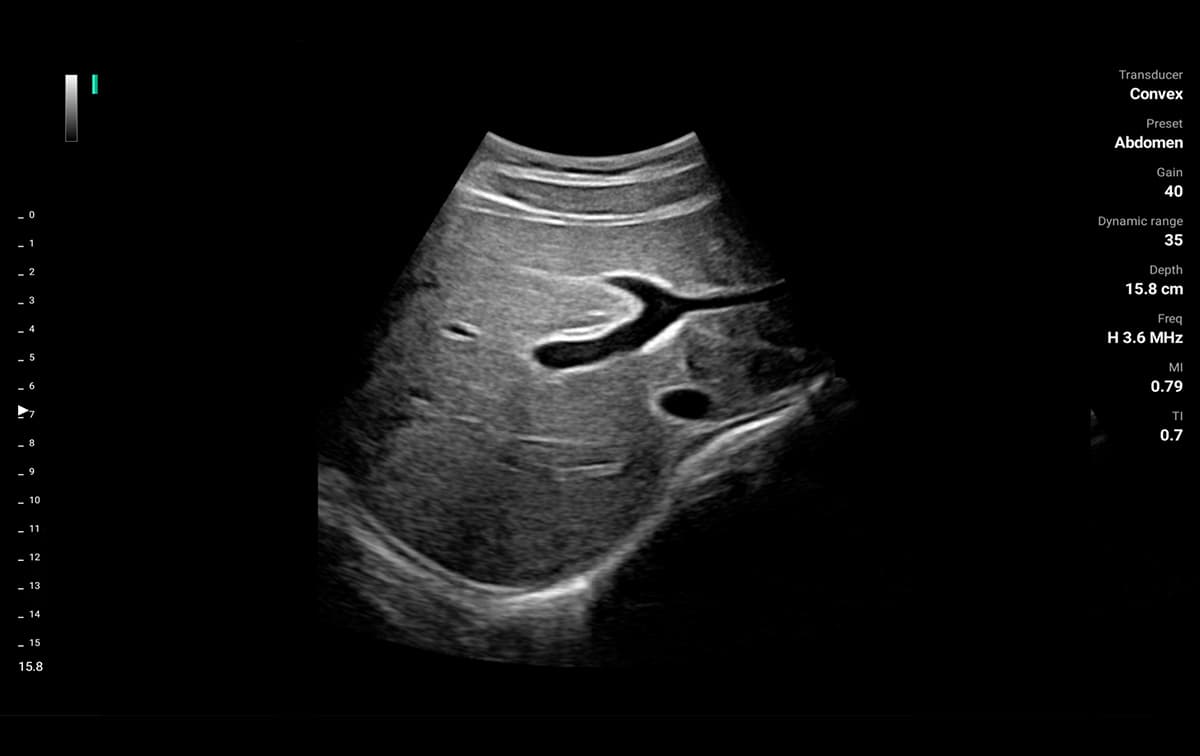

B mode: Convex probe, abdomen preset, 15.8 cm depth, H 3.6 MHz. Screen capture courtesy of ASUS.
Live, not staged
Screen recordings courtesy of ASUS. For use by qualified medical professionals.
Built for Vascular Work
The LU800L linear probe covers the exams vascular clinicians run every day: carotid and peripheral vessel imaging at 4.2-12.5 MHz, with B-mode, M-mode, Color Flow, Pulsed Wave, and Power Doppler on tap.
AI-assisted intima-media thickness (IMT) measurement supports carotid assessment, and the whole system goes wherever the patient is: bedside, ambulance, operating theater, or a rural outreach clinic.
Pair it with a VasoGuard physiologic testing system and you cover both sides of the vascular workup: waveforms and pressures from VasoGuard, real-time imaging from the LU800.
See it scan

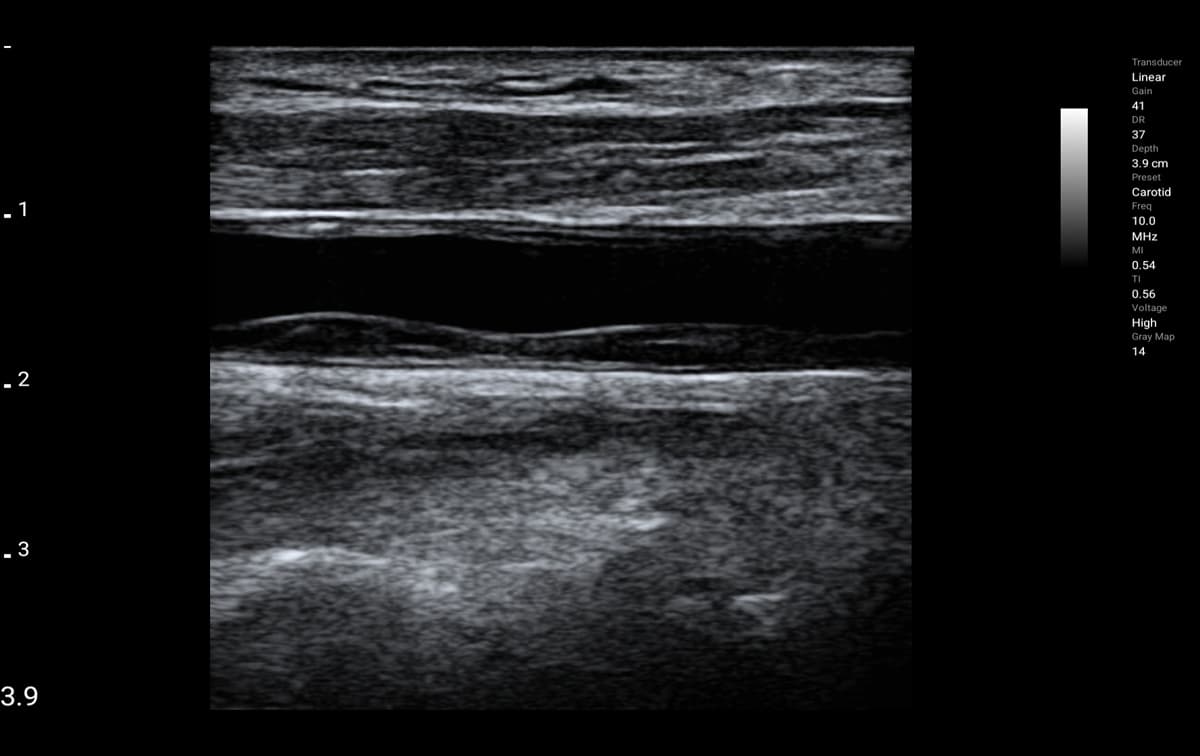

Carotid
Finger peripheral vessel, pulsed wave
Thyroid gland cyst
Clinical images and video courtesy of ASUS. For use by qualified medical professionals.

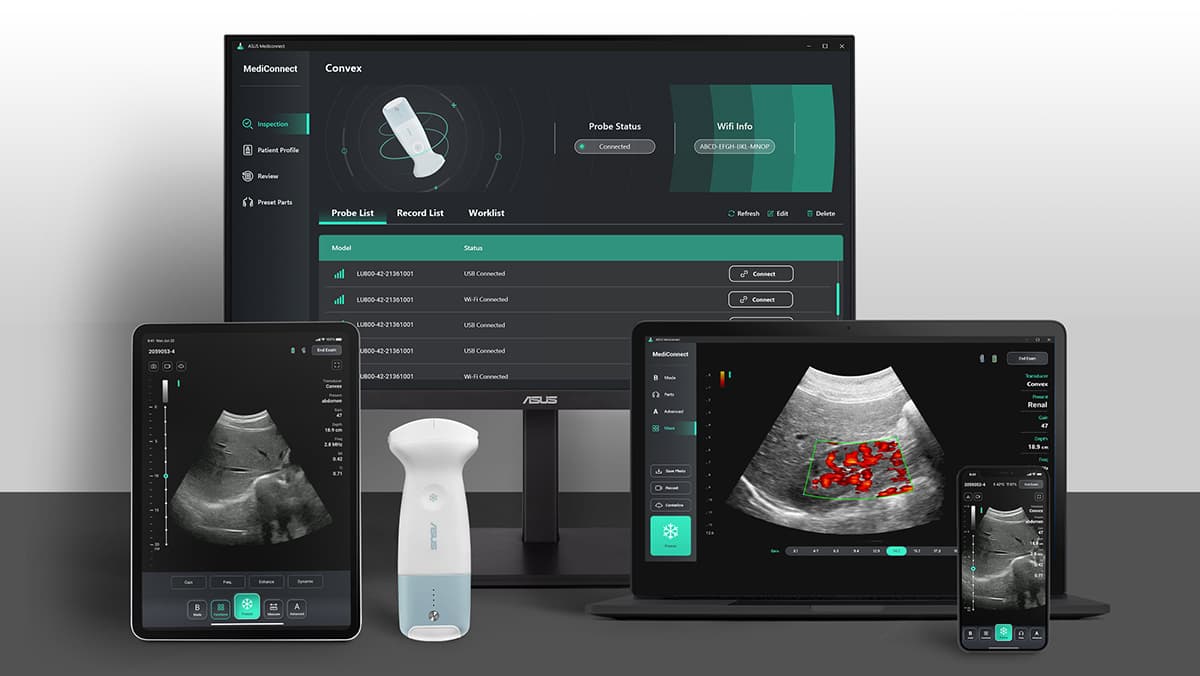

The ASUS MediConnect App
The LU800 is a software-based ultrasound system. MediConnect is the software: acquisition, tuning, measurement, and archiving on the smartphone, tablet, or PC you already carry.
Windows
Runs on the devices you already own
Compatible smartphones and tablets on iOS and Android, plus Windows and Chrome OS, connect wirelessly to the probe and are ready to scan in seconds.
Full imaging control
Depth, frequency, gain, persistence, enhancement, TGC, and dynamic range tuning, with one-key image optimization when you need speed over fine-tuning.
Measurement toolsets
Dedicated measurement packages spanning vascular, cardiac, OB, MSK, and superficial applications.
AI voice commands
Hands stay sterile and on the probe. Voice control drives common actions like freeze and save.
Cloud Viewer, DICOM, and PACS
A web-based Cloud Viewer plus robust DICOM support connect exams to your existing PACS workflow.
MediConnect, Built Into VasoGuard
VasoGuard integrates ASUS MediConnect directly: launch handheld imaging from the VasoGuard home screen, then move between physiologic testing and live imaging without relaunching anything. One cart, one workflow, both sides of the vascular workup.
AI That Does the Measuring
MediConnect includes AI-powered automated measurements: intima-media thickness for carotid assessment and post-void residual bladder volume. Less caliper work, more consistency between operators.
Enhanced by AI
Introduction to IMT measurement
Introduction to post-void residual (PVR) measurement
Getting Started Is the Easy Part
Short official tutorials walk through everything from the first scan to advanced measurements.
1. Start scanning now
2. Tuning function
3. Image and video
4. Annotation and body mark
5. Creating custom presets
6. Essential control
7. Advanced measurement
8. Efficient setting
Bring Handheld Imaging Into Your Vascular Practice
Talk to a CorVascular product specialist about clinical applications, workflow integration, and ordering. Attending SVU 2026 in National Harbor? Come find us July 30 through August 1.
The ASUS Handheld Ultrasound LU800 is intended for use by qualified medical professionals. CorVascular serves as the exclusive U.S. importer and vascular market distributor for the ASUS FDA-cleared ultrasound portfolio. ASUS and MediConnect are trademarks of ASUSTeK Computer Inc. Product images, clinical images, and videos courtesy of ASUS.
