VasoGuard Vascular Testing Systems - Complete Product Line
VasoGuard V6
Professional Vascular Testing System
The V6 provides a perfect balance of performance and value. This versatile system offers essential features with reliable performance, making it an excellent choice for growing practices and smaller facilities.
Reliable 6-Pump Vascular Testing Technology
The V6 combines professional design with reliable 6-pump technology for comprehensive vascular testing and documentation.
Features 6 independent pressure pumps for comprehensive vascular testing and reliable measurements.
High-resolution medical-grade 22" touchscreen display with antimicrobial coating for clear visualization.
Ergonomic cart with height adjustment allows perfect sitting or standing position for any user.
More than five hours of run-time on a single charge for extended testing sessions.
Four waterproof PPG probes with digit clips for comprehensive photoplethysmography testing.
One continuous wave Doppler port (8 MHz) for essential vascular assessment and monitoring.
Complete Vascular Testing Solution
The VasoGuard V6 is designed for comprehensive vascular testing including ABI studies, TBI measurements, PPG toe pressures, and segmental pressure studies. Its versatile design makes it ideal for growing practices, smaller facilities, and clinics requiring reliable performance.
Ideal Applications:
- Ankle Brachial Index (ABI) studies
- Toe Brachial Index (TBI) studies
- PPG Toe Pressures
- Basic Venous Reflux
- Lower Extremity Studies
- Segmental Pressure Studies
Compliance & Standards
The entire VasoGuard V-Series system (cart, computer, and all accessories) as it is delivered to customers has been certified compliant with all applicable global regulatory requirements for physiological testing devices, including:
- IEC 60601-1 Edition 3.1: General requirements for basic safety and essential performance.
- IEC 60601-1-2 Edition 4.0: Electromagnetic disturbances - Requirements and tests.
- ISO 14971 Third Edition: Medical devices - Application of risk management to medical devices.
- IEC 62304 Edition 1.1: Consolidated Version: Medical devices - Application of risk management to medical devices.
- ISO 10993-1 Fifth edition: Biological evaluation of medical devices - Part 1: Evaluation and testing within a risk management process.
- IEC 80369-5: Edition 1.0: Small-bore connectors for liquids and gases in healthcare applications - Part 5 connectors for limb inflation applications [Including Corrigendum 1 (2017) and Corrigendum 2 (2021)].
- ISO 80601-2-30: Edition 2.0: Particular requirements for the basic safety and essential performance of automated non-invasive sphygmomanometers.
- ISO 60601-2-37 Edition 2.1: Particular requirements for the basic safety and essential performance of ultrasonic medical diagnostic and monitoring equipment.
- ISO 80601-2-61 2017-12 (Corrected version 2018-02): Part 2-61: Particular requirements for basic safety and essential performance of pulse oximeter equipment.
- ISO 81060-1 First edition: Non-invasive sphygmomanometers — Part 1: Requirements and test methods for non-automated measurement type.
- IEC 60068-2-27 Edition 4.0: Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock.
- IEC 60068-2-64 2008+AMD1:2019 CSV: Environmental testing - Part 2-64: Tests - Test Fh: Vibration, broadband random and guidance.
- AIM 7351731 Rev. 2.00: Medical Electrical Equipment and System Electromagnetic Immunity Test for Exposure to Radio Frequency Identification Readers.
- IEC 62359 Edition 2.1 2017-09 Consolidated Version: Ultrasonics - Field characterization - Test methods for the determination of thermal and mechanical indices related to medical diagnostic ultrasonic fields.
Complete V6 Package
Everything you need for comprehensive vascular testing
VasoGuard V6 6-Pump Device
Included with VasoGuard V6 system
VasoGuard PC Software with DICOM Interface
Included with VasoGuard V6 system
H1 Height Adjustable Cart
Included with VasoGuard V6 system

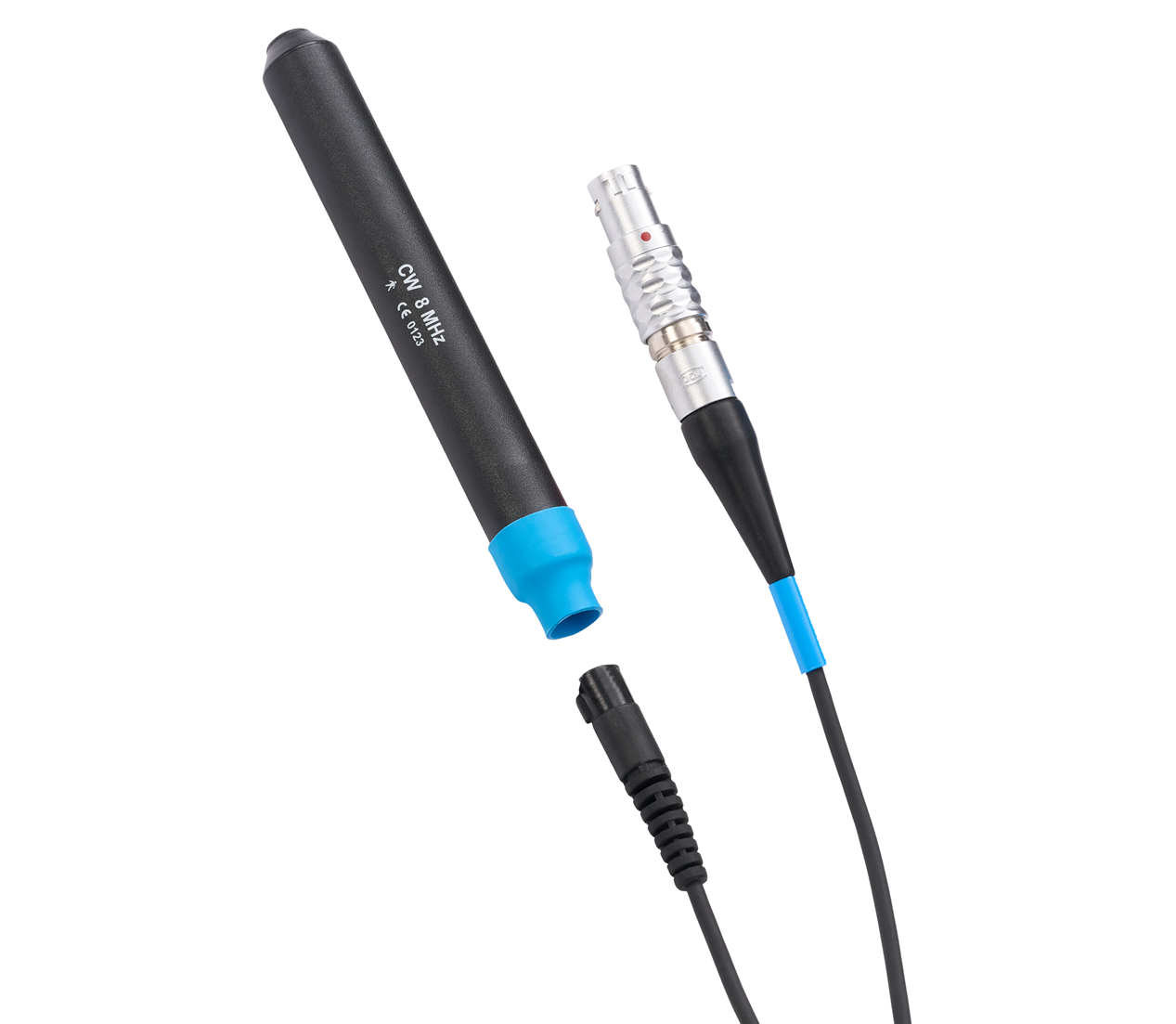

8 MHz Standard Doppler Probe
Included with VasoGuard V6 system
4 Waterproof PPG Probes with Digit Clips
Included with VasoGuard V6 system
22" Medical-Grade Touchscreen PC with Battery
Included with VasoGuard V6 system
Sealed Backlit Keyboard
Included with VasoGuard V6 system

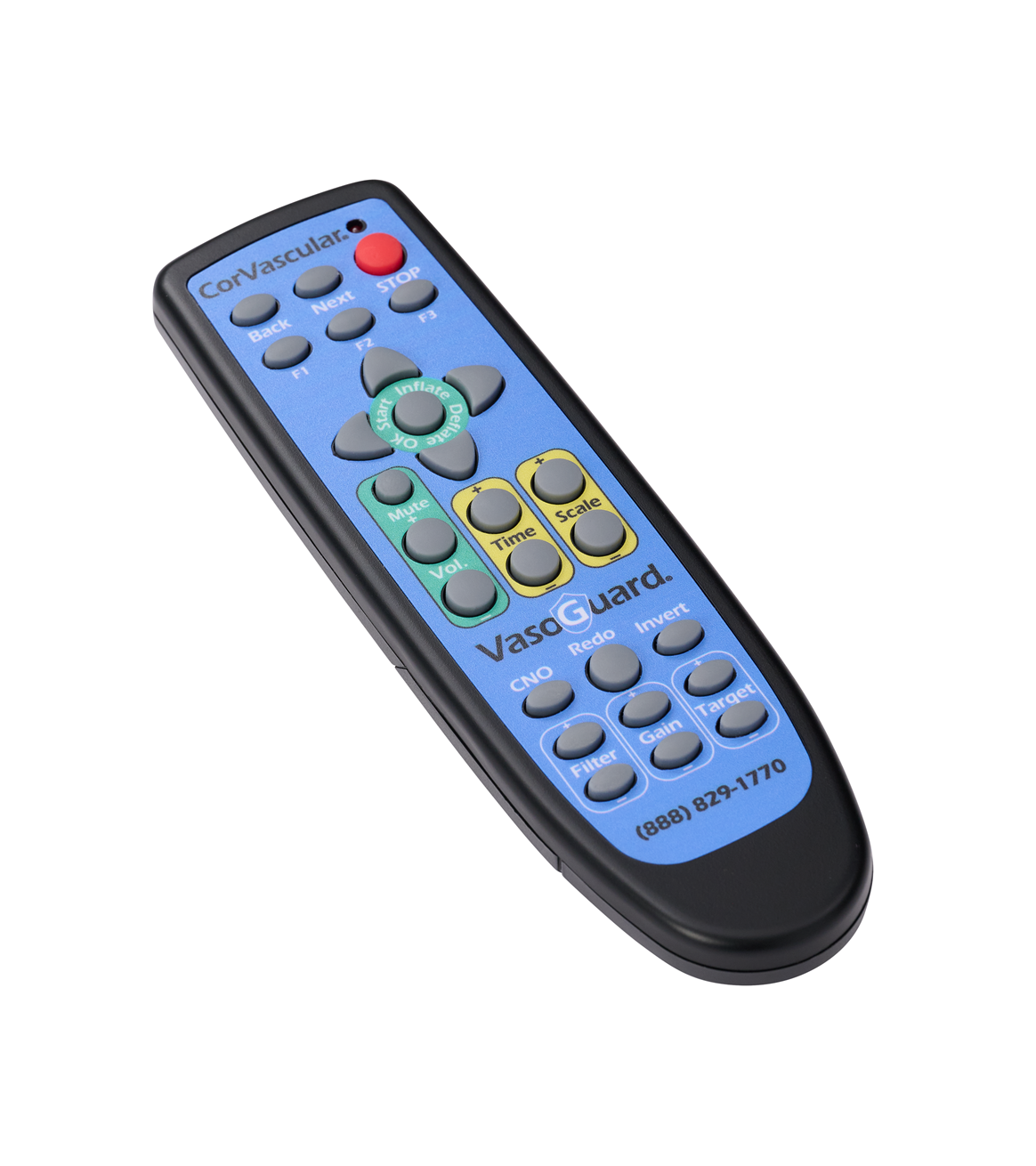

Wireless Remote Control
Included with VasoGuard V6 system
Comprehensive Cuff Set
Included with VasoGuard V6 system
5-Year Warranty & Accidental Damage Coverage
Included with VasoGuard V6 system
Available Options
Choose the right options for your specific testing needs
8 MHz Flat Doppler Probe
Eliminates the need to hold the probe during testing for hands-free convenience.
4 MHz Pencil Doppler Probe
Lower frequency probe for deeper penetration and larger vessel assessment.
10 MHz Pencil Doppler Probe
Higher frequency probe for superficial vessels and detailed imaging.
Additional PPG Probes
Additional waterproof PPG probes for expanded testing capabilities.
Why Choose the VasoGuard V6?
Experience reliable vascular testing with professional technology
Perfect Balance of Performance and Value
Ideal for growing practices and smaller facilities requiring reliable performance with essential features.
User-Friendly Touchscreen Interface
22" medical-grade touchscreen display with antimicrobial coating and sealed backlit keyboard for intuitive operation.
Ergonomic Design
H1 height adjustable cart allows perfect sitting or standing position for any user.

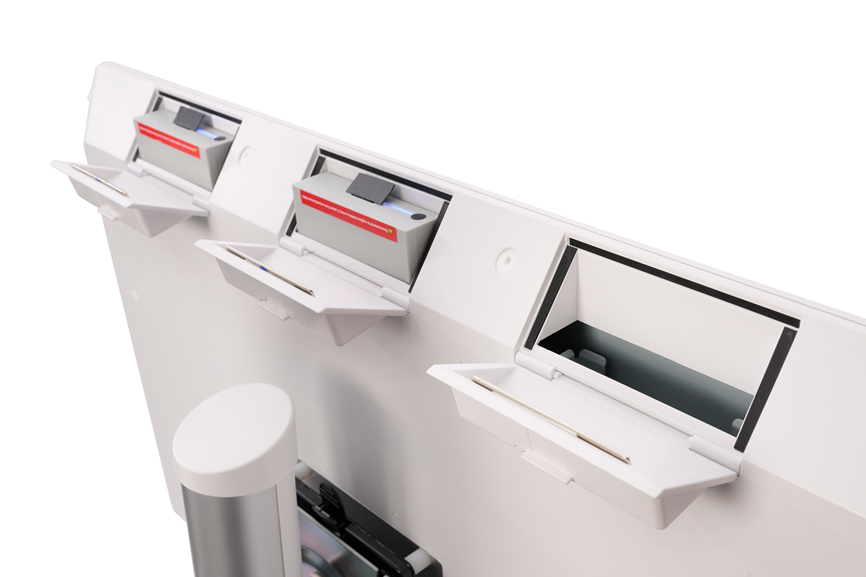

Extended Battery Life
More than five hours of run-time on a single charge for extended testing sessions without interruption.
6-Pump System
Features 6 independent pressure pumps for comprehensive vascular testing and reliable measurements with proven capabilities.
Complete System
Includes 6-pump device, touchscreen PC, cart, 4 PPG probes, 1 Doppler port, comprehensive cuff set, and 5-year warranty.
Ready for Professional 6-Pump Vascular Testing?
Experience reliable vascular testing with professional 6-pump technology. Contact our sales team to learn more about the VasoGuard V6.
