ASUS LU800L Linear Wireless Ultrasound Probe, Advanced + DICOM Software
Part Number:
Availability: In stock
Features
- Wireless: No cable to the display. The probe connects over Wi-Fi to the ASUS MediConnect app.
- Linear array: 128 elements, 4.2-12.5 MHz, up to 12.6 cm depth.
- Three software levels: Color (B, M, Color Flow, Power Doppler), Advanced (adds pulsed-wave Doppler), or Advanced + DICOM.
- Runs on devices you already have: ASUS MediConnect for iOS, Android, Windows, and Chrome OS.
- Charging base included: 3000 mAh battery. Charges in its base or over USB-C.
ASUS LU800 Wireless Ultrasound
LU800L Linear
The vascular workhorse
- Frequency
- 4.2-12.5 MHz
- Max depth
- 12.6 cm
- Elements
- 128
- Weight
- 270 g
LU800L Linear
Clinical Applications
- General abdominal imaging
- Pediatric
- Small organ (thyroid, prostate, scrotum, breast)
- Neonatal cephalic
- Musculoskeletal (conventional)
- Musculoskeletal (superficial)
- Peripheral vessel
- Carotid
- Pulmonary
- Interventional guidance (free-hand needle/catheter)
For use by qualified medical professionals.
Five Imaging Modes
B, M, Color Flow, and Power Doppler come with every software level. Pulsed-wave Doppler comes with Advanced and Advanced + DICOM. These are actual LU800 screen captures.

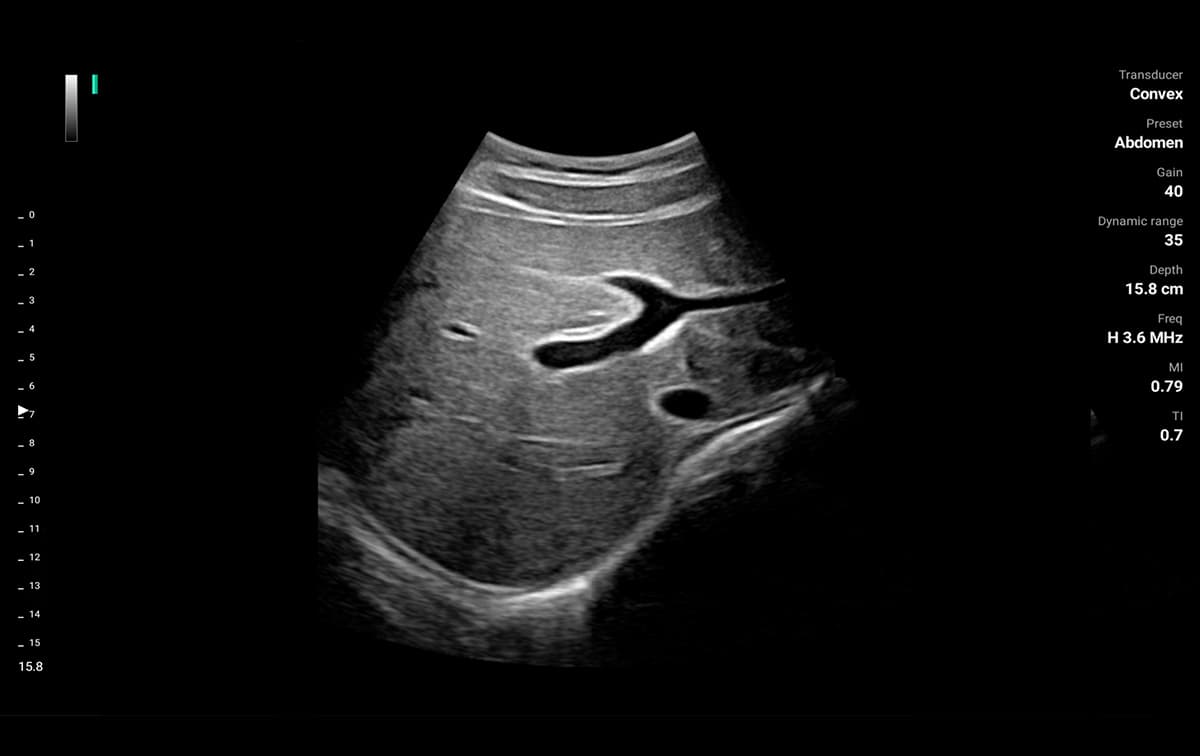

B mode: Convex probe, abdomen preset, 15.8 cm depth, H 3.6 MHz.
Software Options
Three software levels for the LU800L, each its own part number.
Color
- B-mode
- M-mode
- Color Flow
- Power Doppler
- JPEG, PNG, and BMP images
Advanced
- Everything in Color
- Pulsed-wave (PW) Doppler
Advanced + DICOM
- Everything in Advanced
- DICOM images
- PACS connectivity

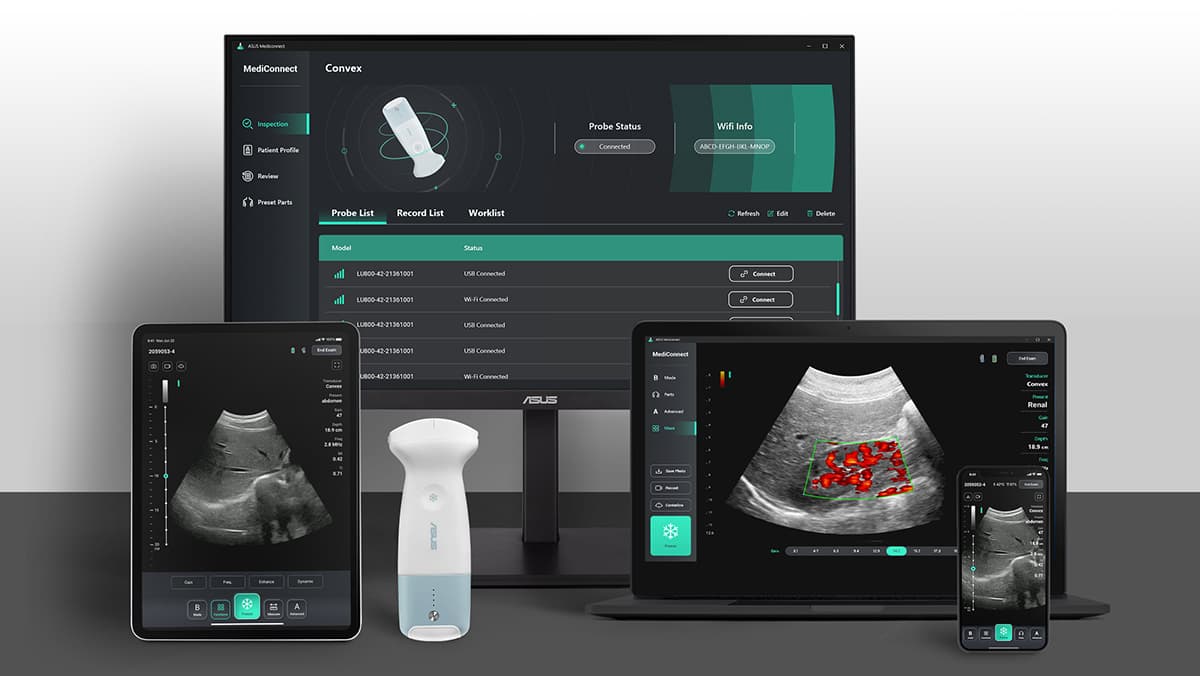

ASUS MediConnectRuns on the phone, tablet, or PC you already have
The LU800L connects wirelessly to the ASUS MediConnect app, which handles scanning, tuning, measurements, and saving images.
Runs on the devices you already own
Compatible smartphones and tablets on iOS and Android, plus Windows and Chrome OS, connect wirelessly to the probe and are ready to scan in seconds.
Full imaging control
Depth, frequency, gain, persistence, enhancement, TGC, and dynamic range tuning, with one-key image optimization when you need speed over fine-tuning.
Measurement toolsets
Dedicated measurement packages spanning vascular, cardiac, OB, MSK, and superficial applications.
Hands-free voice control
Hands stay sterile and on the probe. Voice control drives common actions like freeze and save.
Windows
See It Scan

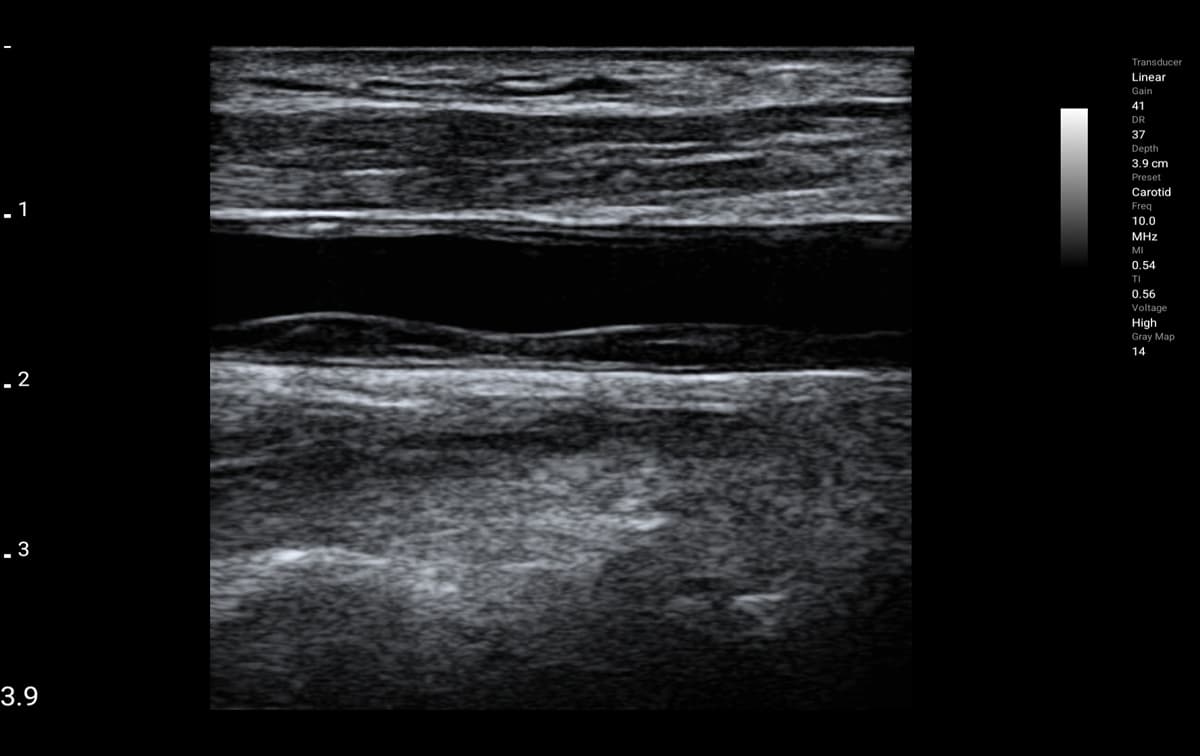

Carotid
Finger peripheral vessel, pulsed wave
Thyroid gland cyst

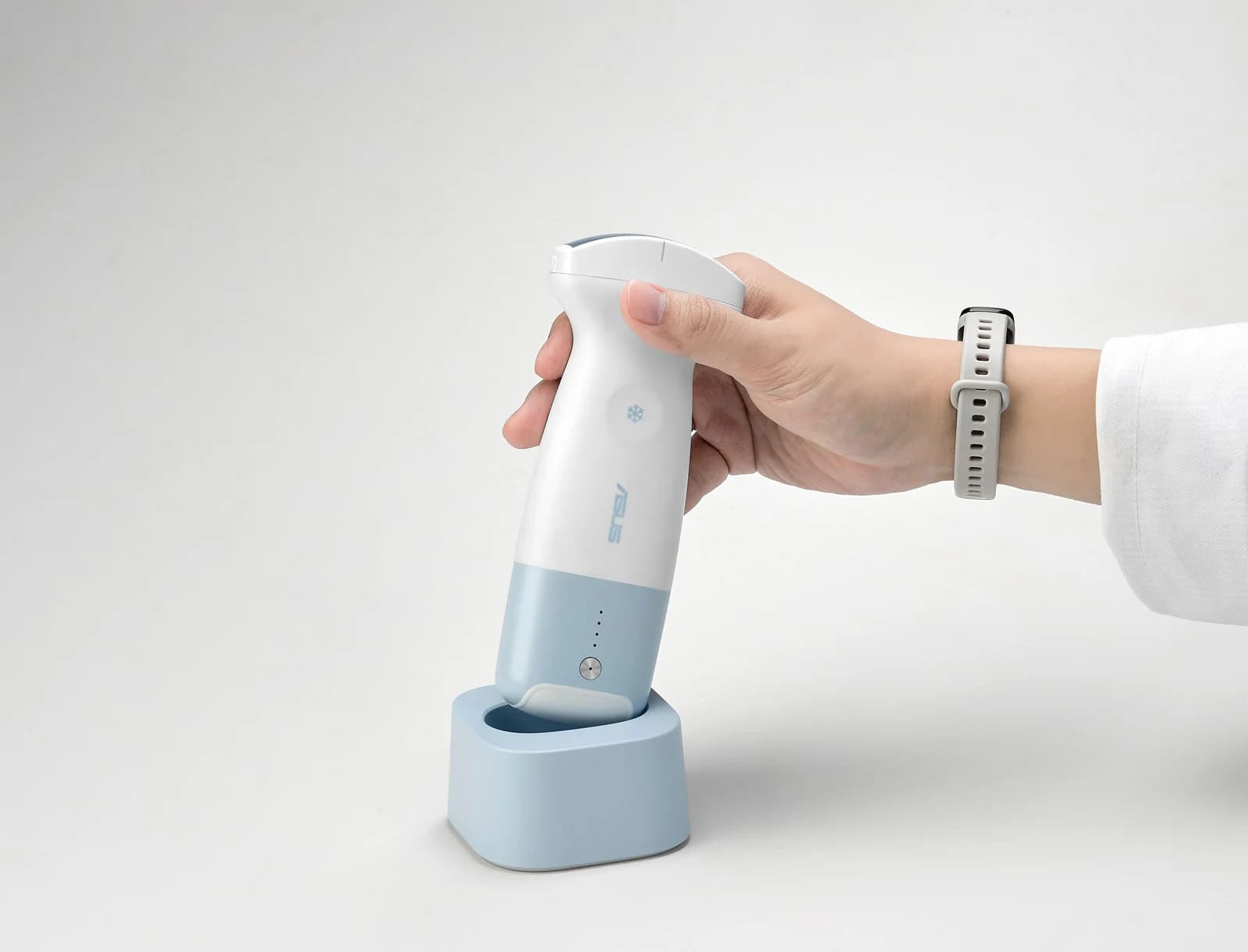

Charging base included
Every LU800L ships with its charging base. Set the probe in the base to charge it, or use the USB-C port on the probe. Four lights on the probe show the battery level.
Full Specifications
LU800L probe
| Array | Linear |
|---|---|
| Frequency | 4.2-12.5 MHz |
| Max depth | 12.6 cm |
| Elements | 128 |
| Dimensions (L × W × H) | 168 × 58 × 34 mm |
| Weight (with battery) | 270 g |
LU800 platform
| Imaging modes | B, M, Color Flow, Power Doppler; Pulsed-wave Doppler with Advanced software |
|---|---|
| Image files | JPEG, PNG, BMP; DICOM with Advanced + DICOM software |
| App | ASUS MediConnect for iOS, Android, Windows, and Chrome OS |
| Connection | Wireless, direct Wi-Fi (2.4 GHz and 5 GHz) |
| Battery | 3000 mAh rechargeable Li-ion |
| Charging | Charging base included; USB-C port on the probe |
| Water resistance | IP44 |
| Warranty | 3 years |
In the Box
- Wireless handheld probe
- Charging base
The LU800 Family

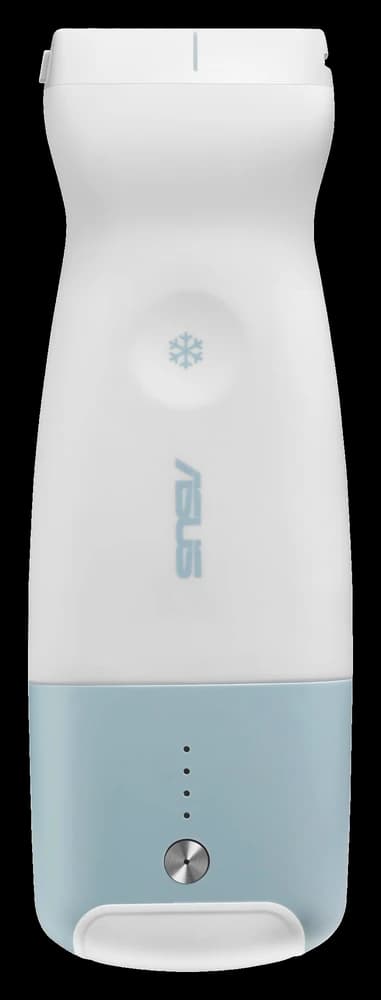

- LinearLU800LThe vascular workhorseThis probe

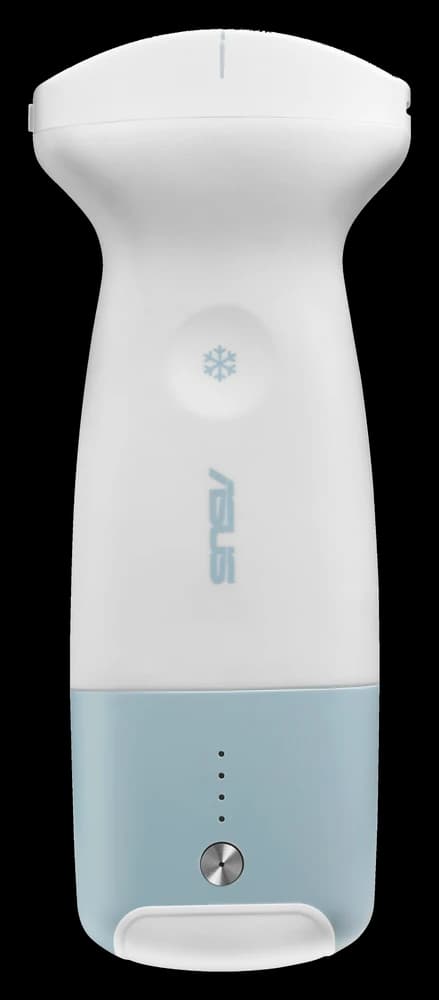

- ConvexLU800CAbdomen and OB/Gyn

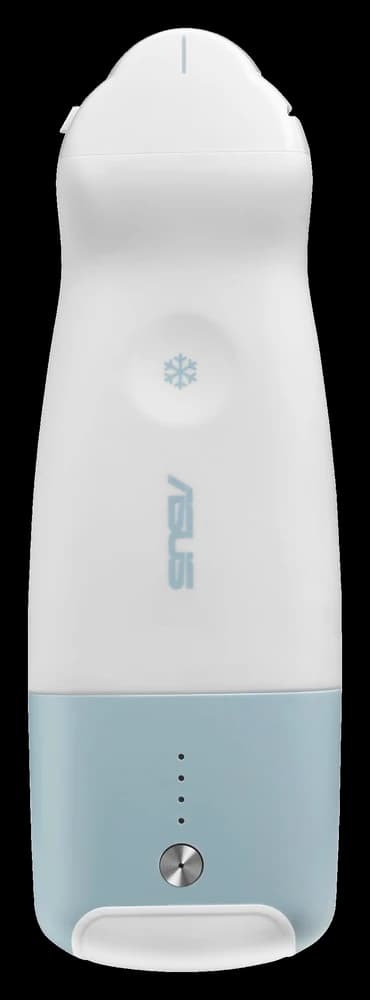

- MicroconvexLU800MDifficult windows and pediatrics

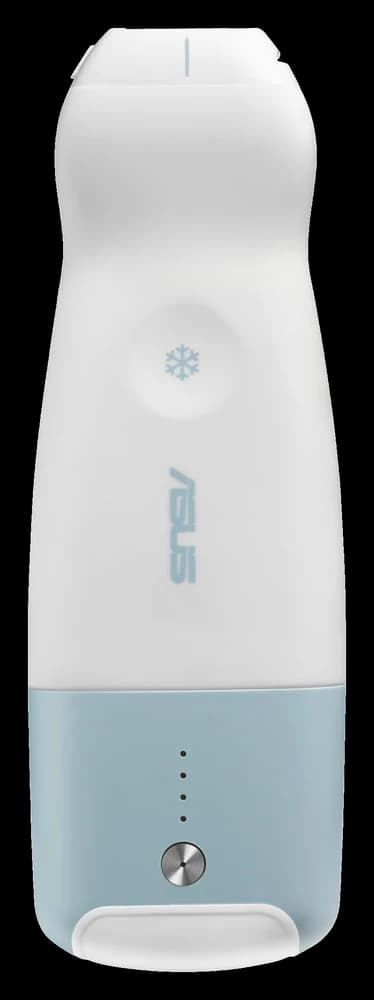

- Phased ArrayLU800PACardiac and lung

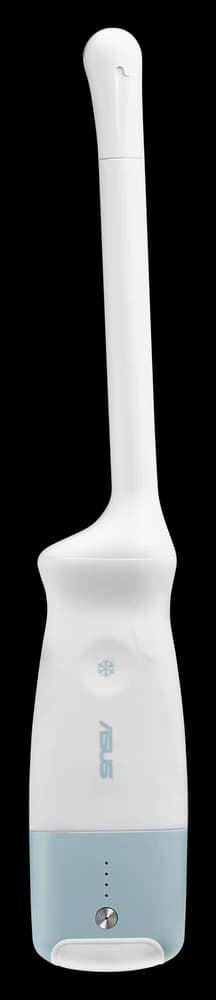

- EndocavityLU800EPelvic, prostate, and early OB
For use by qualified medical professionals. CorVascular is the exclusive U.S. importer and vascular market distributor for ASUS's portfolio of FDA-cleared ultrasound devices. ASUS and MediConnect are trademarks of ASUSTeK Computer Inc.
